Hydraulic Auger Drives Supplier in Australia
Compare DOZCO hydraulic auger drives for excavators and other carrier machines in Australia. Explore auger drills, extensions, hitches and teeth, then request a quote for your machine and ground conditions.
Our range covers 20 auger drive models, from the compact DA Mini to the heavy-duty DA 25000, with local support for contractors in Melbourne, Sydney, Adelaide, Brisbane and Perth.
- 20Auger drive models
- 0.8–25 tCarrier range
- 100–2,000 mmAuger drill diameter
Range of DOZCO Hydraulic Auger Drives
Compare 20 hydraulic auger drive models, from DA Mini to DA 25000. Filter by your machine's operating details, tick two or more models to compare them side by side, and add the drives you like to your enquiry.
| Compare | Model | Carrier (t) | Torque (Nm) | Oil flow (L/min) | Pressure (bar) | Output shaft | Enquiry |
|---|---|---|---|---|---|---|---|
| DA Mini View specifications | 0.8–2 | 305–1,175 | 12–45 | 60–200 | 65 mm round | ||
| DA 1200 View specifications | 1–4 | 327–1,320 | 15–50 | 60–220 | 65 mm round | ||
| DA 1500 View specifications | 1–2 | 542–1,580 | 20–75 | 60–200 | 65 mm round | ||
| DA 2000 View specifications | 1.5–3 | 656–2,270 | 30–75 | 60–200 | 65 mm round | ||
| DA 2500 View specifications | 1.5–3 | 855–2,510 | 30–75 | 60–200 | 65 mm round | ||
| DA 3000 View specifications | 2–4 | 1,057–3,249 | 40–80 | 60–200 | 65 mm round | ||
| DA 3500 View specifications | 2–4 | 1,270–3,425 | 40–80 | 60–200 | 65 mm round | ||
| DA 4000 View specifications | 2–4 | 1,290–3,795 | 40–80 | 60–200 | 65 mm round | ||
| DA 4500 View specifications | 3–6 | 1,570–4,580 | 40–95 | 60–210 | 65 mm round | ||
| DA 5000 View specifications | 3–6 | 1,608–4,890 | 40–95 | 60–210 | 65 mm round | ||
| DA 5500 View specifications | 5–7 | 1,720–5,320 | 40–115 | 70–210 | 75 mm square | ||
| DA 6000 View specifications | 5–7 | 1,855–5,960 | 40–115 | 70–210 | 75 mm square | ||
| DA 7000 View specifications | 5–8 | 2,236–7,300 | 60–150 | 70–250 | 75 mm square | ||
| DA 8000 View specifications | 5–10 | 2,839–8,250 | 60–150 | 70–250 | 75 mm square | ||
| DA 9000 View specifications | 5–8 | 3,526–8,760 | 50–95 | 80–200 | 75 mm square | ||
| DA 10000 View specifications | 5–8 | 3,878–10,250 | 50–95 | 80–200 | 75 mm square | ||
| DA 12000 View specifications | 10–15 | 4,870–12,300 | 80–150 | 100–240 | 75 mm square | ||
| DA 15000 View specifications | 12–17 | 5,007–15,160 | 80–150 | 100–240 | 75 mm square | ||
| DA 20000 View specifications | 15–25 | 13,787–19,200 | 100–170 | 150–240 | 95 mm square | ||
| DA 25000 View specifications | 17–25 | 17,233–24,920 | 100–170 | 150–240 | 95 mm square |
No models match these details.
Reset a filter, or ask DOZCO to help select the right drive.
On mobile, swipe the table sideways to see all columns. All 20 models are catalogue options; Australian stock and lead times need confirmation.
Auger Drive Specifications
Select a model to view its specifications and drilling guide.
DA 5500 shown. Appearance varies by model.
DA 5500
DA 5500 — guide to drilling
Drilling depth by auger diameter and ground condition, from the DOZCO product brochure.
| Auger diameter | Soft | Medium | Hard |
|---|
Depths are in metres. "No data" means the brochure entry is blank; it does not mean zero depth. Confirm the configuration and site requirements with DOZCO.

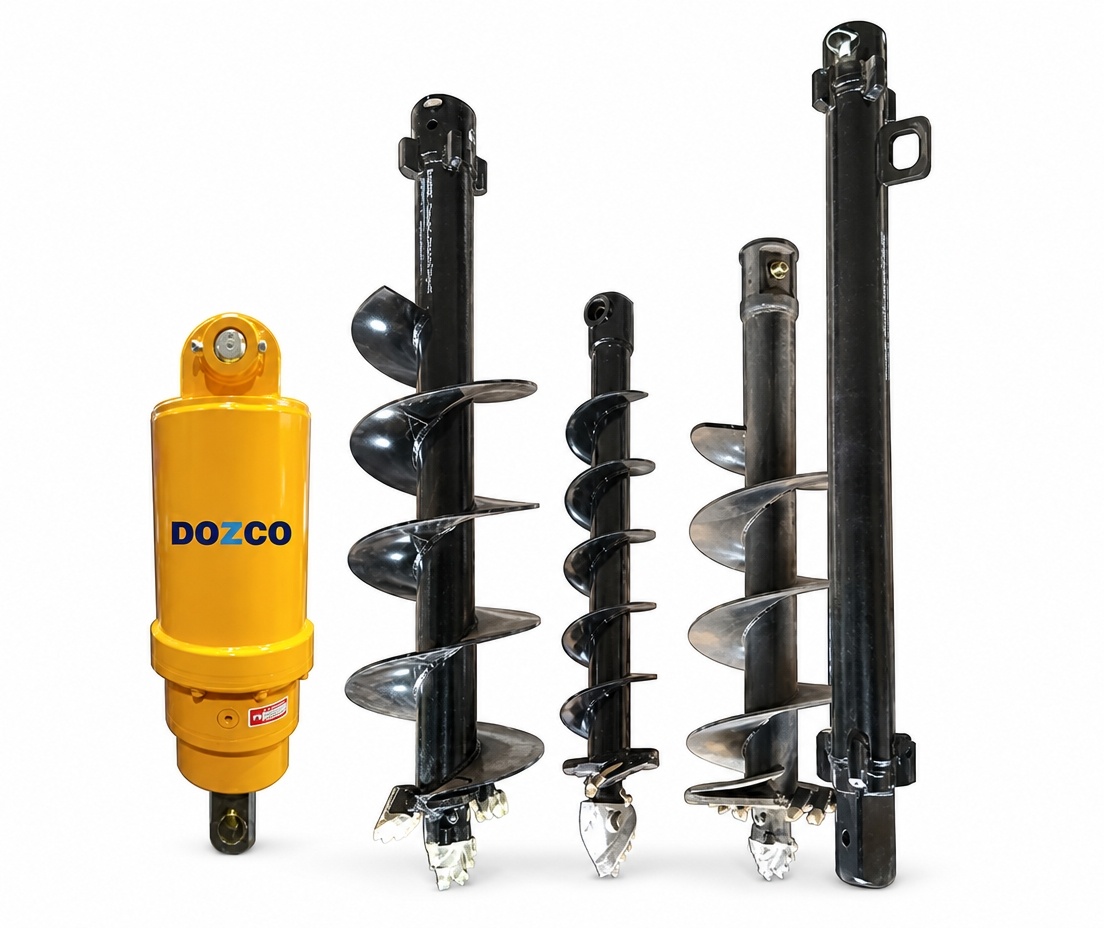

Drive. Drill. Connect.
Choose auger drill bits, extensions, mounting hitches and replacement teeth for your enquiry. The auger drill diameter range is 100–2,000 mm across configurations; DOZCO will confirm the combination for your drive and application.

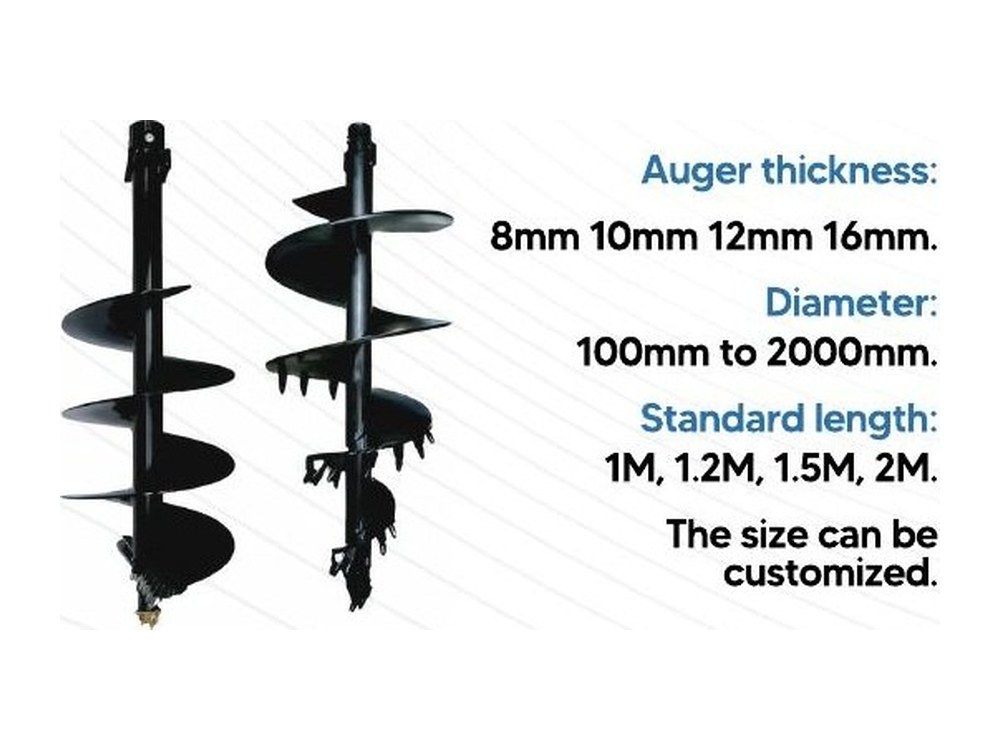

Auger Drills
- Diameter range: 100–2,000 mm
- Standard lengths: 1, 1.2, 1.5 & 2 m
- Flight thicknesses: 8, 10, 12 & 16 mm
- Custom sizes on enquiry

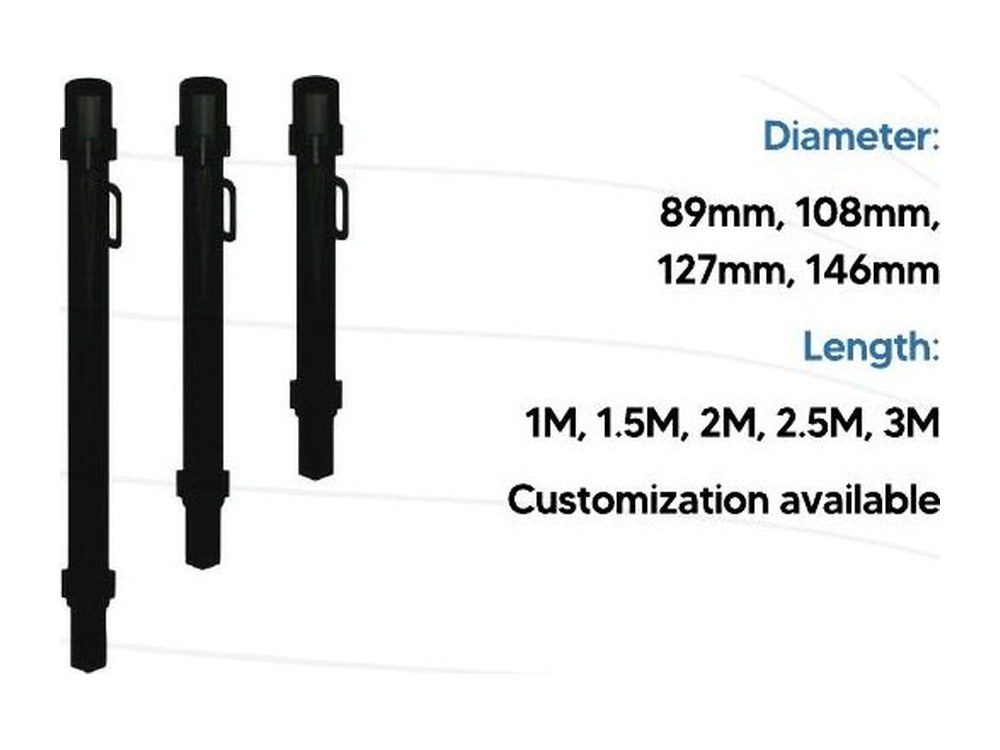

Extensions
- Diameters: 89, 108, 127 & 146 mm
- Lengths: 1, 1.5, 2, 2.5 & 3 m
- Customisation available
- Confirm drive connection

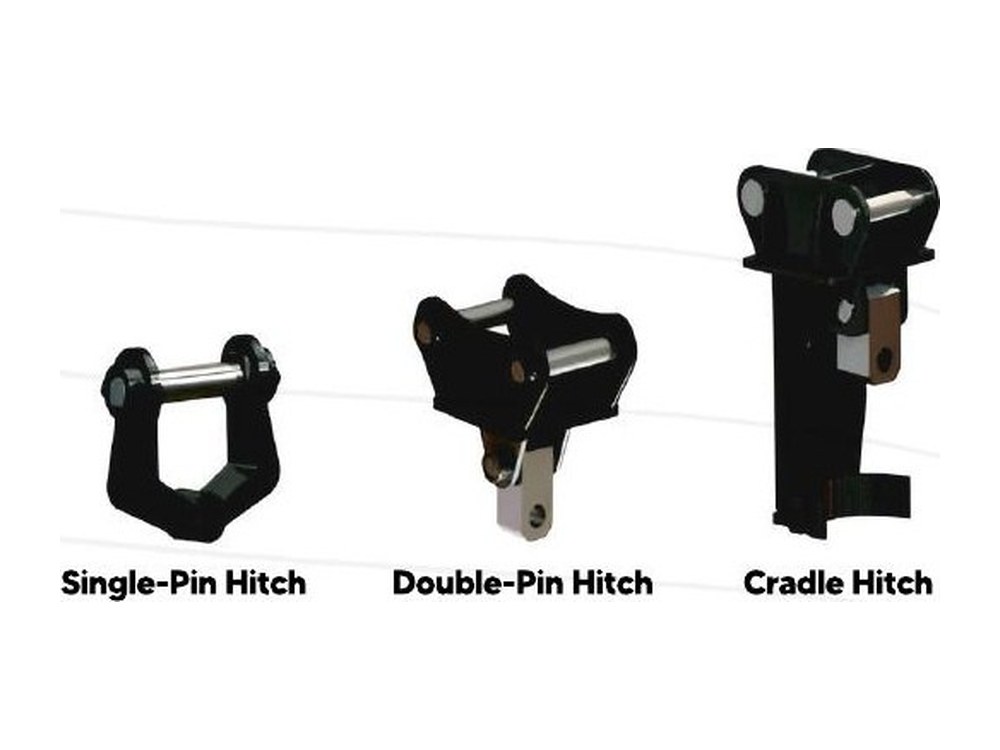

Hitches
- Single-pin hitch
- Double-pin hitch
- Cradle hitch
- Mounting details required

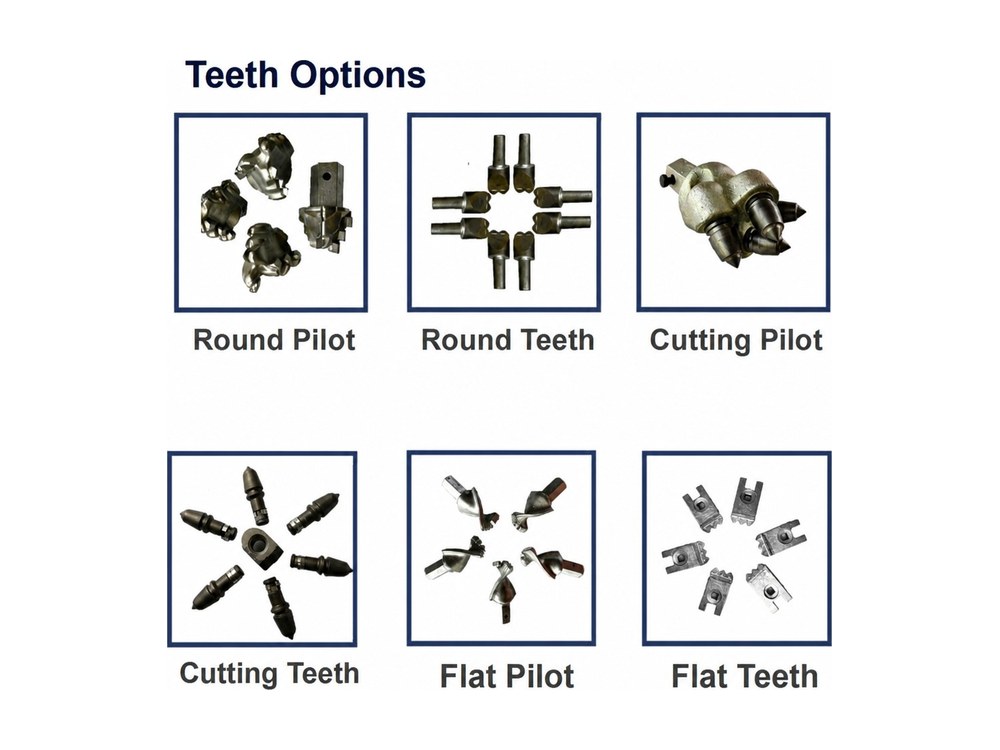

Auger Teeth
- Flat teeth
- Round teeth
- Cutting teeth
- Selection advice on enquiry
The drill and extension dimensions above describe the overall range, not every drive's capacity. Drilling depth depends on model, diameter and ground conditions; refer to the drilling guide for each model and obtain technical confirmation.
Your Auger Enquiry
Choose drives from the range, tell us about your machine and request a quote. No payment is taken here; DOZCO will confirm specifications, pricing, availability and freight.
Application
DOZCO is a leading rock breaker and mining undercarriage supplier in Australia. Our products are customized for mining operations and...
Mining & Quarrying
DOZCO is a leading rock breaker and mining undercarriage supplier in Australia. Our products are customized for mining operations and...
The undercarriage, on the other hand, offers stability even in harsh grounds. With reliable performance and strong after-sales support, our...
Construction & Demolition
The undercarriage, on the other hand, offers stability even in harsh grounds. With reliable performance and strong after-sales support, our...
Designed with advanced technology and precise engineering, our attachments and parts help contractors and construction companies reduce downtime, improve productivity,...
Road Construction / Trenching / Compaction
Designed with advanced technology and precise engineering, our attachments and parts help contractors and construction companies reduce downtime, improve productivity,...
Contractors can crush, sort, and reuse materials like concrete and aggregates efficiently directly on site. This approach helps reduce waste...
Material Processing & Recycling
Contractors can crush, sort, and reuse materials like concrete and aggregates efficiently directly on site. This approach helps reduce waste...
Become a DOZCO Dealer
If you’re a reseller or distributor of undercarriage parts or rock breakers across Australia, New Zealand, Fiji or the south pacific region, we invite you to get in touch to discuss how we can help you grow your business with quality products backed by responsive local service.
To learn more or request a quote, contact our local team on 1300 2 36929 or admin@dozco.com.au or submit the form below and we’ll get back to you.
Frequently Asked Questions
Q. How do I choose the correct auger drive?
Start with the carrier weight, operating hydraulic flow and pressure listed for each model. Share your machine make and model, required hole diameter, depth and ground conditions with DOZCO so the team can assess the complete setup.
Q. Can I purchase directly from this page?
You can select drives and send a purchase enquiry. DOZCO needs to confirm the configuration, price, availability and freight before you order. This page does not take payments or create confirmed orders.
Q. Does the drive include a drill, hitch and hoses?
Package inclusions depend on your configuration. Select the drill and accessories you need, and ask DOZCO to confirm exactly what is included in your quote.
Q. Can I request custom drill or extension sizes?
Yes. Auger drills and extensions can be customised. Include your required dimensions and application in the enquiry so the team can assess the request.
Q. Where can I check drilling depth guidance?
Each model above includes a drilling guide by auger diameter and soft, medium or hard ground. Ask DOZCO for technical clarification; the listed depths are not a guarantee for every site.
