With Anti-Blank Firing + Auto lube
$54,670
(Including 10% GST)
| Operating Weight | Oil Flow |
|---|---|
| 2550 Kg | 180 – 240 lpm |
| Tool Diameter | Operating Pressure |
| 155 mm | 160 – 190 bar |
| Impact Rate | Return Line Pressure |
| 300 – 450 BPM | 10 Kg/cm2 |

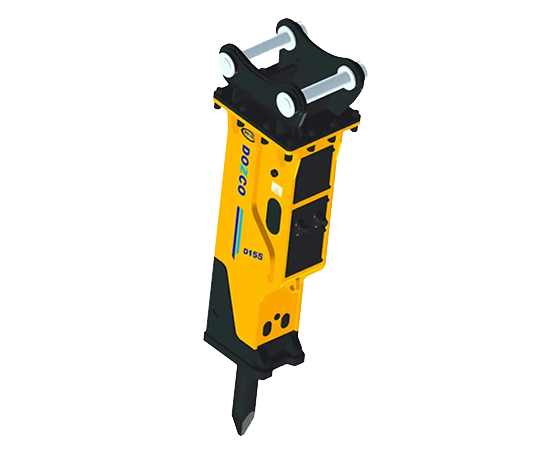

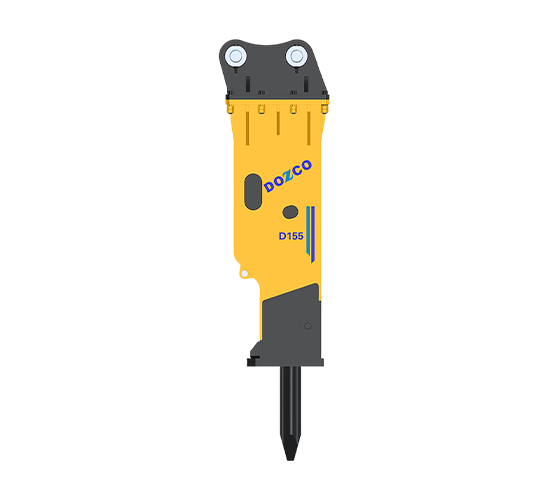

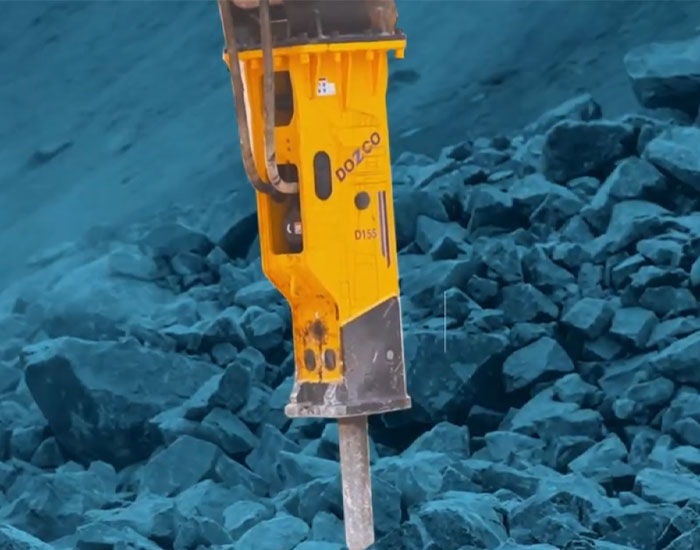

DOZCO D155 Rock Breaker is engineered for demanding applications, including primary and secondary breaking, tunneling and reinforced concrete removal. Designed for 28.0 – 36.0-ton heavy range excavators, it delivers consistent impact power, ensuring efficient material handling and precise operations.
Equipped with Anti-Blank Firing (ABF) technology, D155 prevents unnecessary firing when not in contact with material. This feature reduces wear, extends lifespan and enhances operational reliability. Built to withstand tough conditions D155 offers exceptional durability making it an essential tool for heavy-duty tasks.
| Specifications | Rock Breaker D155 | |
|---|---|---|
| Operating Weight* |
Box |
2550 Kg |
| Side |
– | |
| Top Split |
– | |
| Height (Incl. Tool) |
Box |
3114 mm |
| Side |
– | |
| Top Split |
– | |
| Tool Diameter |
155 mm | |
| Tool Length |
1400 mm | |
| Optimal Oil Flow |
180 – 240 lpm | |
| Setting Pressure |
220 bar | |
| Operating Pressure |
160 – 190 bar | |
| Return Line Pressure |
10 kg/cm2 | |
| Impact Rate |
300 – 450 BPM | |
| Bottom Plate Thickness (HB) |
60 mm | |
| Hose |
In & Out |
|
| 11/4 inch | ||
| Control Valve Type |
Internal | |
| Applicable Carrier |
28.0 – 36.0 ton | |
| 2 Stroke Control |
– | |
| Accumulator |
Yes | |
| Auto Greasing |
Optional | |
| Anti Blank Firing (ABF) |
Yes | |
* The operating weight include the MC+ Body+Tool weight
* The above specifications are subject to change without prior notice for the quality enhancement.
Qty 2
Qty 1
Qty 2
Qty 1
Qty 1
Qty 1
| Sl. No. | Part Name | Warranty Period |
|---|---|---|
| 1 | BACK HEAD | 1 year from date of supply to the CUSTOMER or 2000 working hrs whichever is earlier |
| 2 | CYLINDER | 1 year from date of supply to the CUSTOMER or 2000 working hrs whichever is earlier |
| 3 | FRONT HEAD | 1 year from date of supply to the CUSTOMER or 2000 working hrs whichever is earlier |
| 4 | PISTON | 1 year from date of supply to the CUSTOMER or 2000 working hrs. (Under the circumstance of crack exclude scratch) whichever is earlier |
| 5 | VALVE ASS'Y | 1 year from date of supply to the CUSTOMER or 2000 working hrs whichever is earlier |
| 6 | THROUGH BOLT ASS'Y | 3 Months from date of supply to the CUSTOMER or 250 working hrs. whichever is earlier |
| 7 | SIDE BOLTS | 3 Months from date of supply to the CUSTOMER or 250 working hrs. whichever is earlier |
| 8 | FRONT COVER | Not covered under warranty |
| 9 | RING BUSH | Not covered under warranty |
| 10 | TOOL (moil, chisel and blunt, wedge) | Not covered under warranty |
| 11 | SEAL KIT | Not covered under warranty |
| 12 | Diaphragm Plate | Not covered under warranty |
