Hydraulic Rock Breaker & Excavator Hammer Attachments in Australia
DOZCO is a reliable supplier of high-quality hydraulic rock breakers and excavator hammer attachments in major Australian cities, including Melbourne, Sydney, Adelaide, Brisbane and Perth. The hydraulic hammers come in different sizes making them suitable wide range of jobs, from light demolition and asphalt removal to tunnelling and breaking hard stone or reinforced concrete.
Built for strength and durability, DOZCO rock breaker machines and hydraulic excavator hammer perform reliably in mining, quarrying, construction, and demolition work. They are designed to handle tough conditions, helping operators achieve steady productivity, fewer breakdowns, and longer service life, supported by DOZCO’s proven manufacturing expertise.
Key Facts
Range of DOZCO Rock Breakers for Heavy Machinery in Australia
Type
Operating Weight (kg)
Application

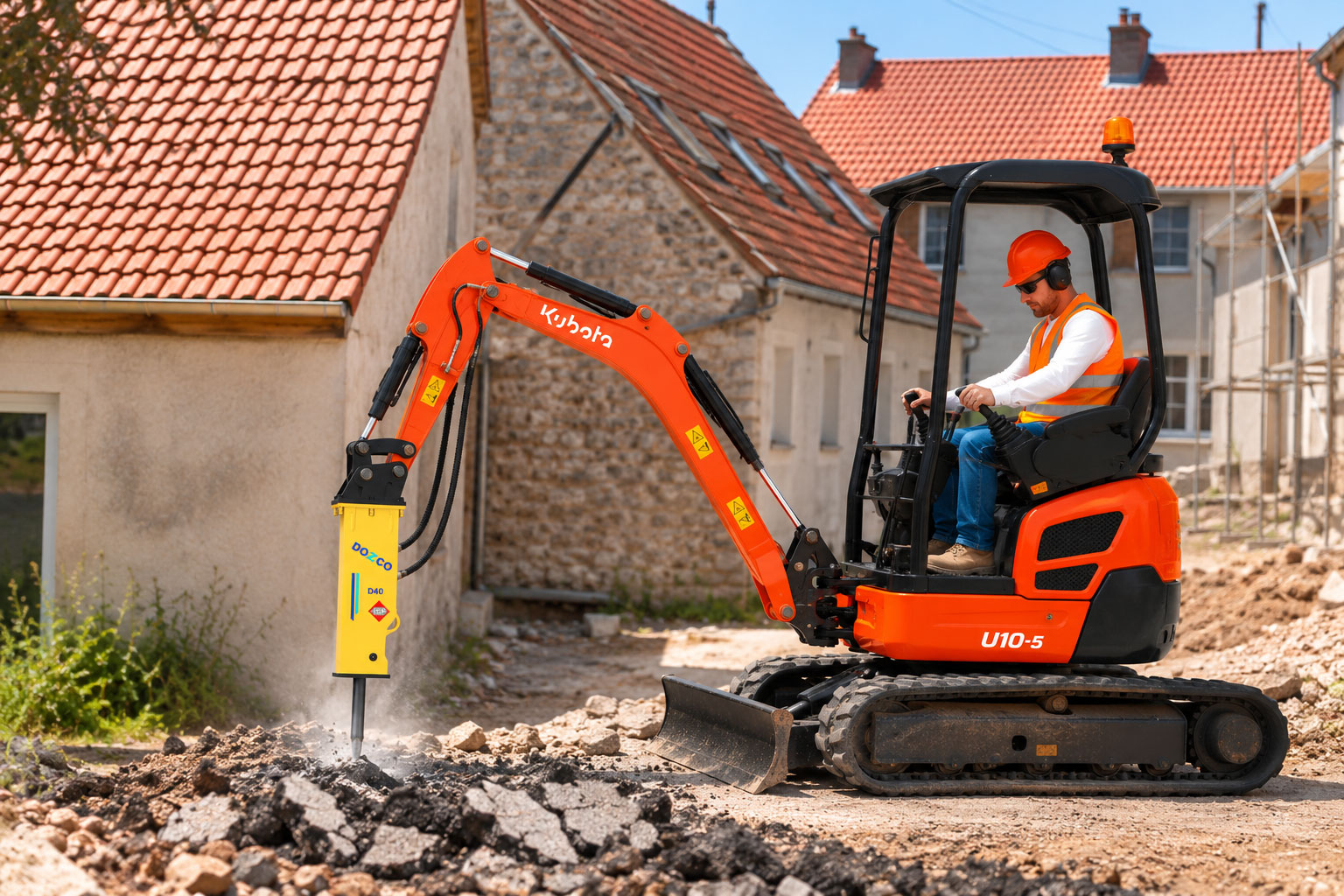

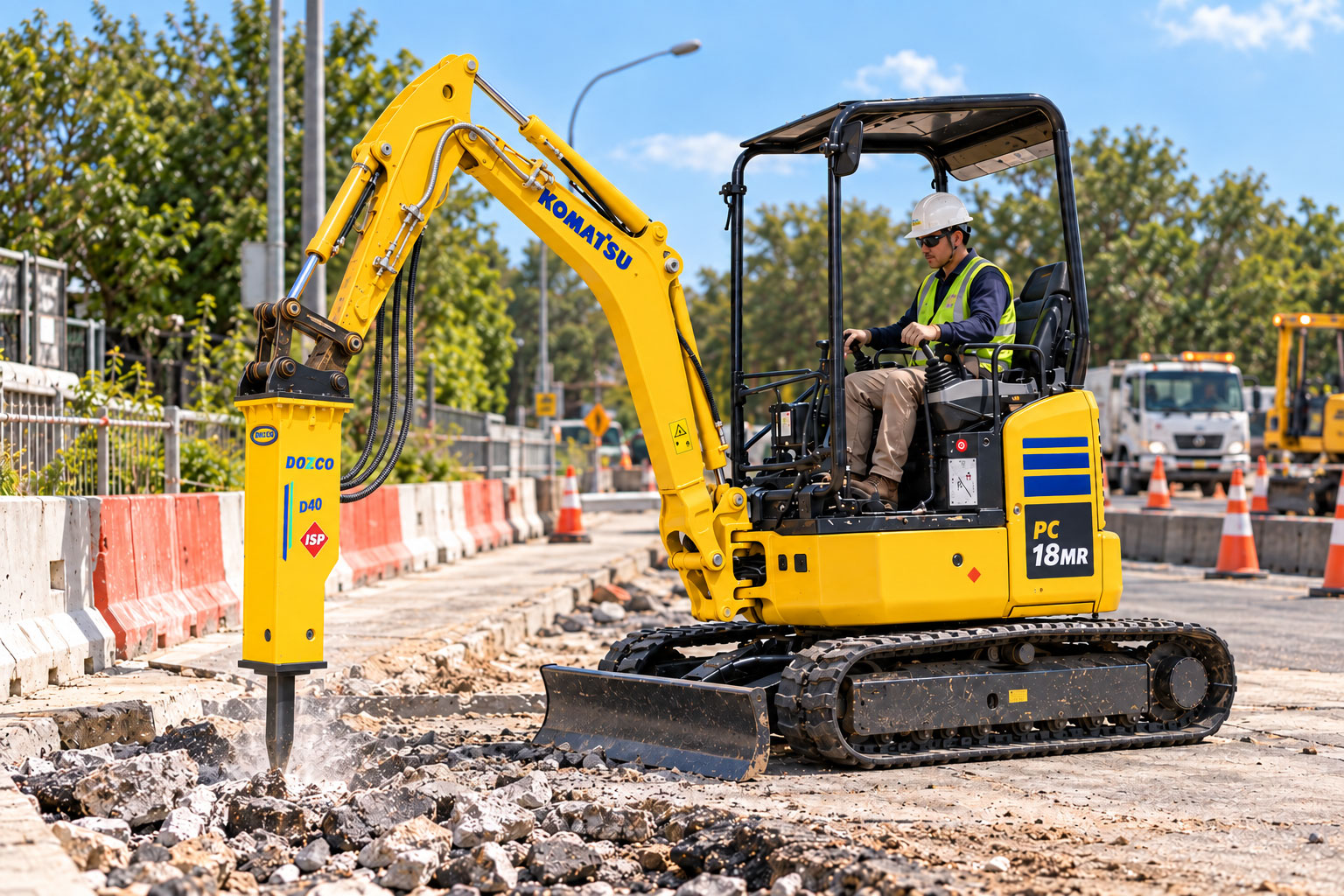

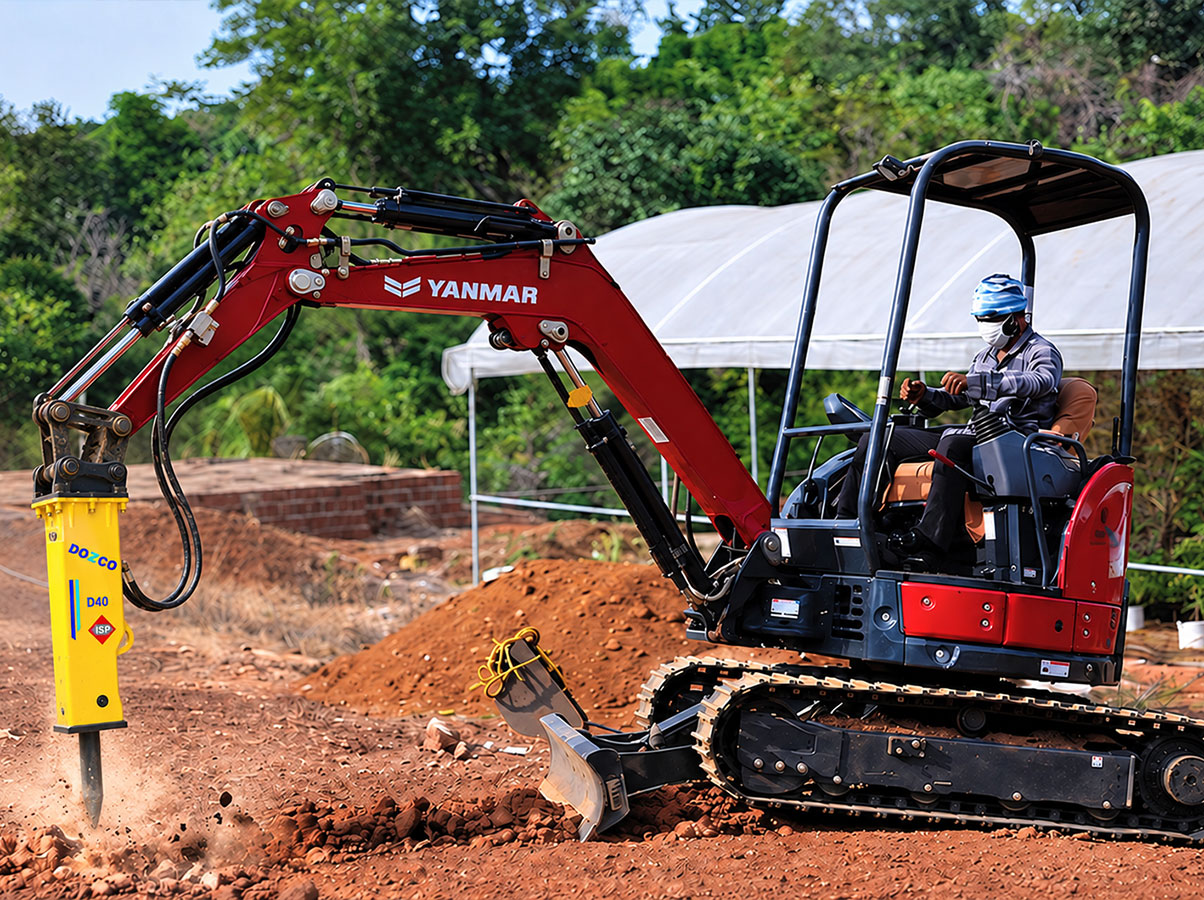

DOZCO D40 Rock Breaker
Light Plus RangeDOZCO D40 Rock Breaker - Light Plus Range
Operating Weight
138 Kg
Optimal Oil Flow
15 – 30 lpm
Impact Rate
800 – 1400 BPM
Tool Diameter
40 mm

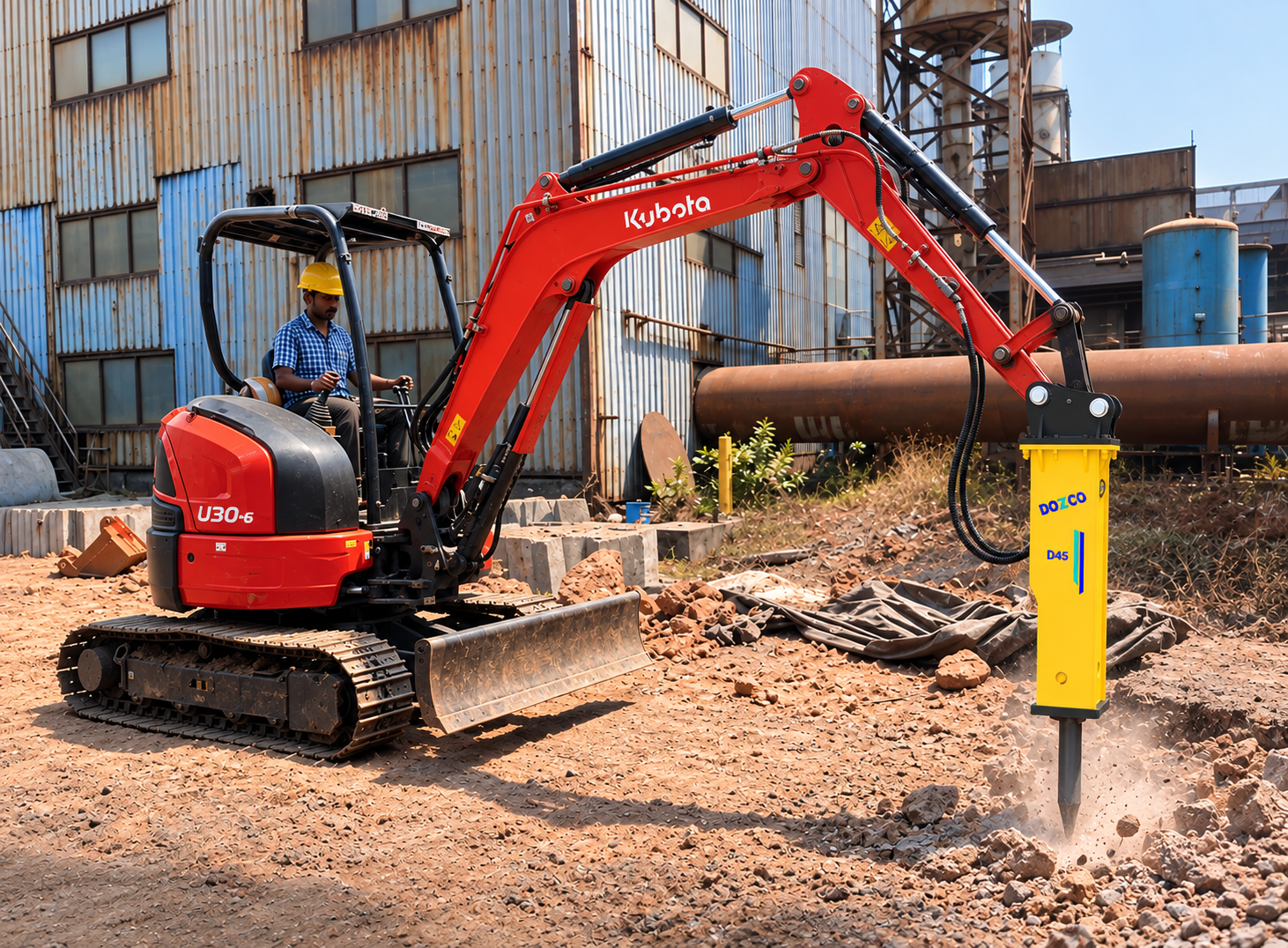

DOZCO D45 Rock Breaker
Light Plus RangeDOZCO D45 Rock Breaker - Light Plus Range
Operating Weight
176 Kg
Optimal Oil Flow
20 – 40 lpm
Impact Rate
700 – 1200 BPM
Tool Diameter
45 mm
DOZCO D53 Rock Breaker
Light Plus RangeDOZCO D53 Rock Breaker - Light Plus Range
Operating Weight
215 Kg
Optimal Oil Flow
25- 50 lpm
Impact Rate
600 – 1100 BPM
Tool Diameter
53 mm

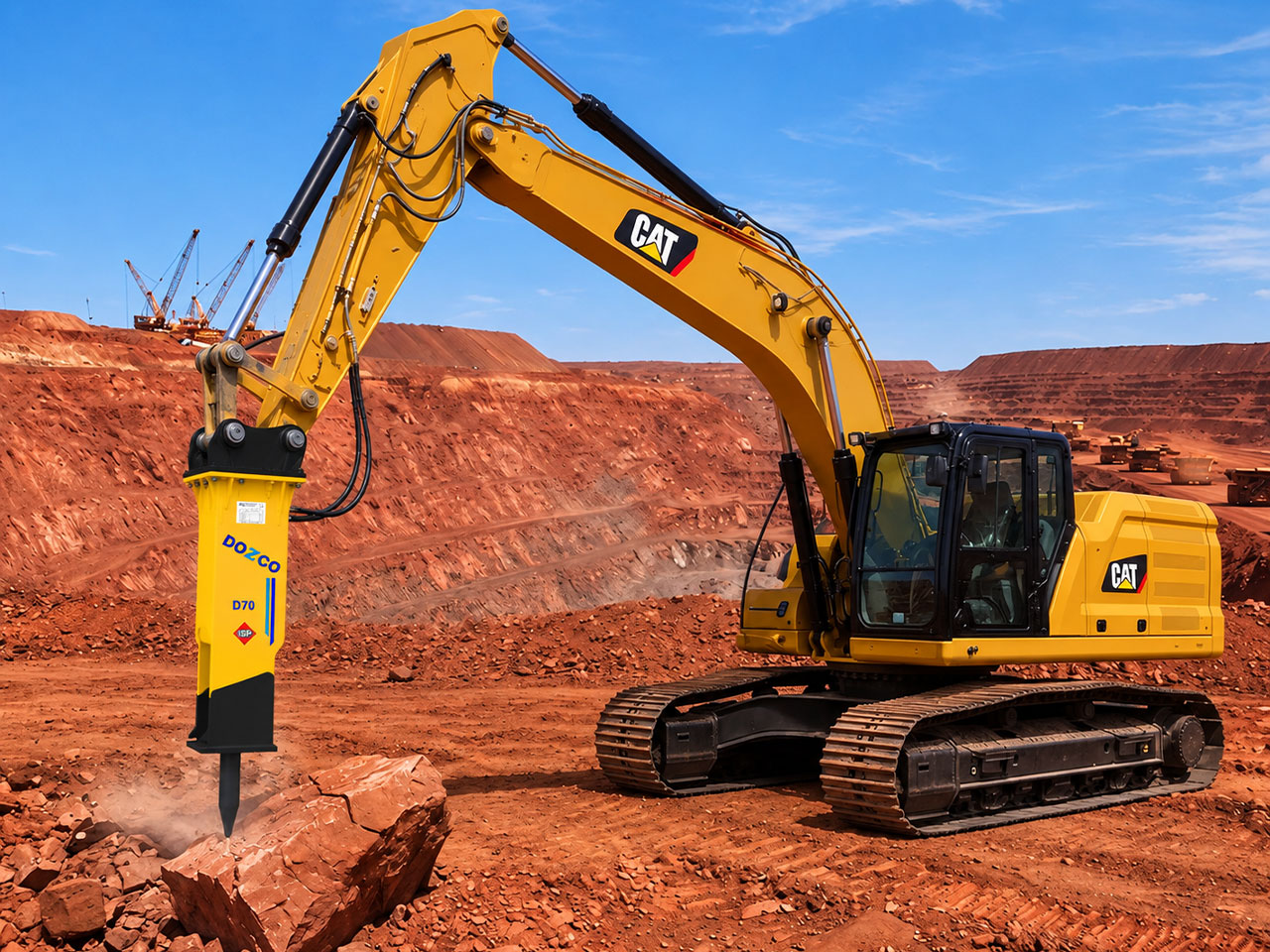

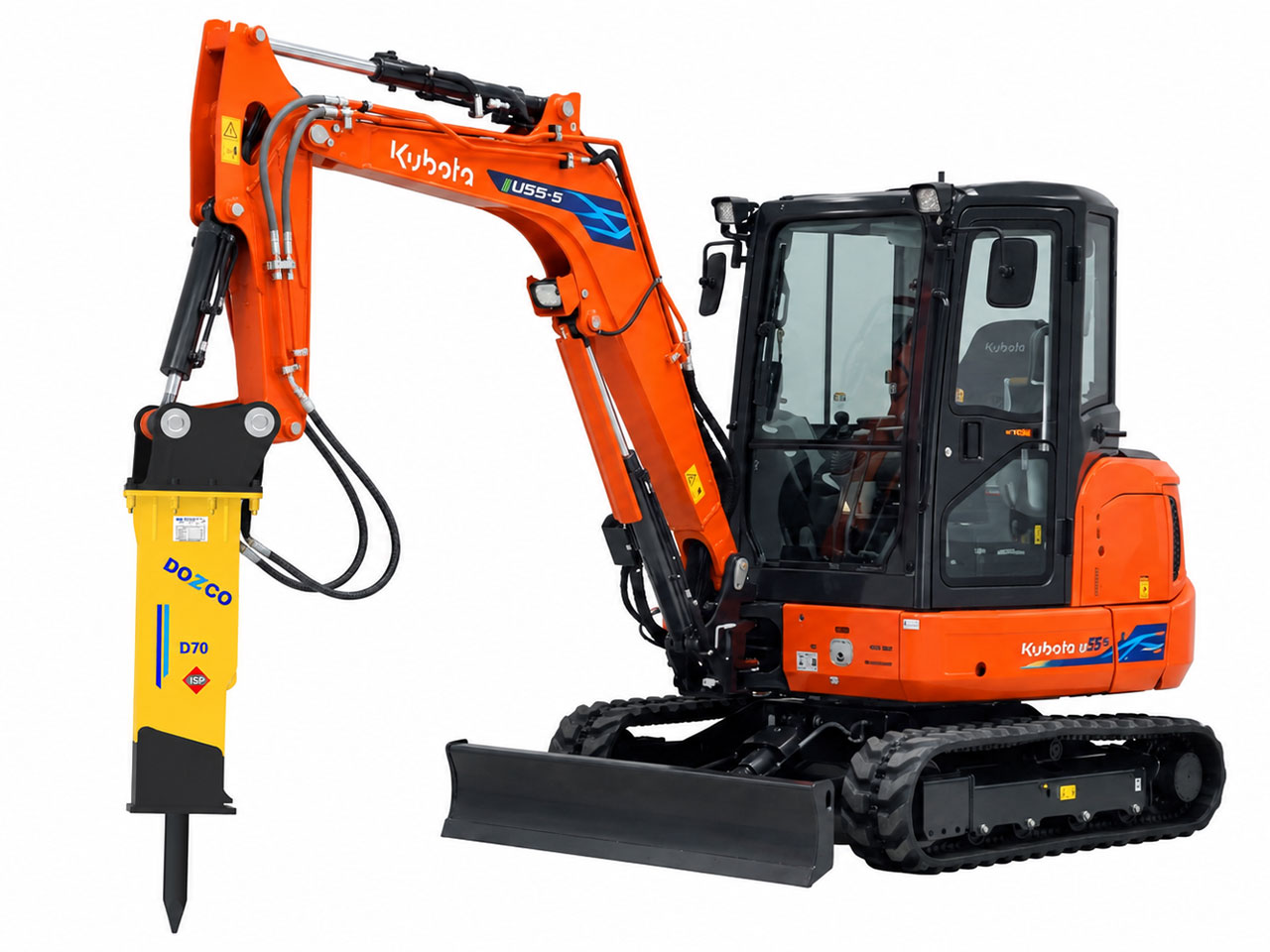

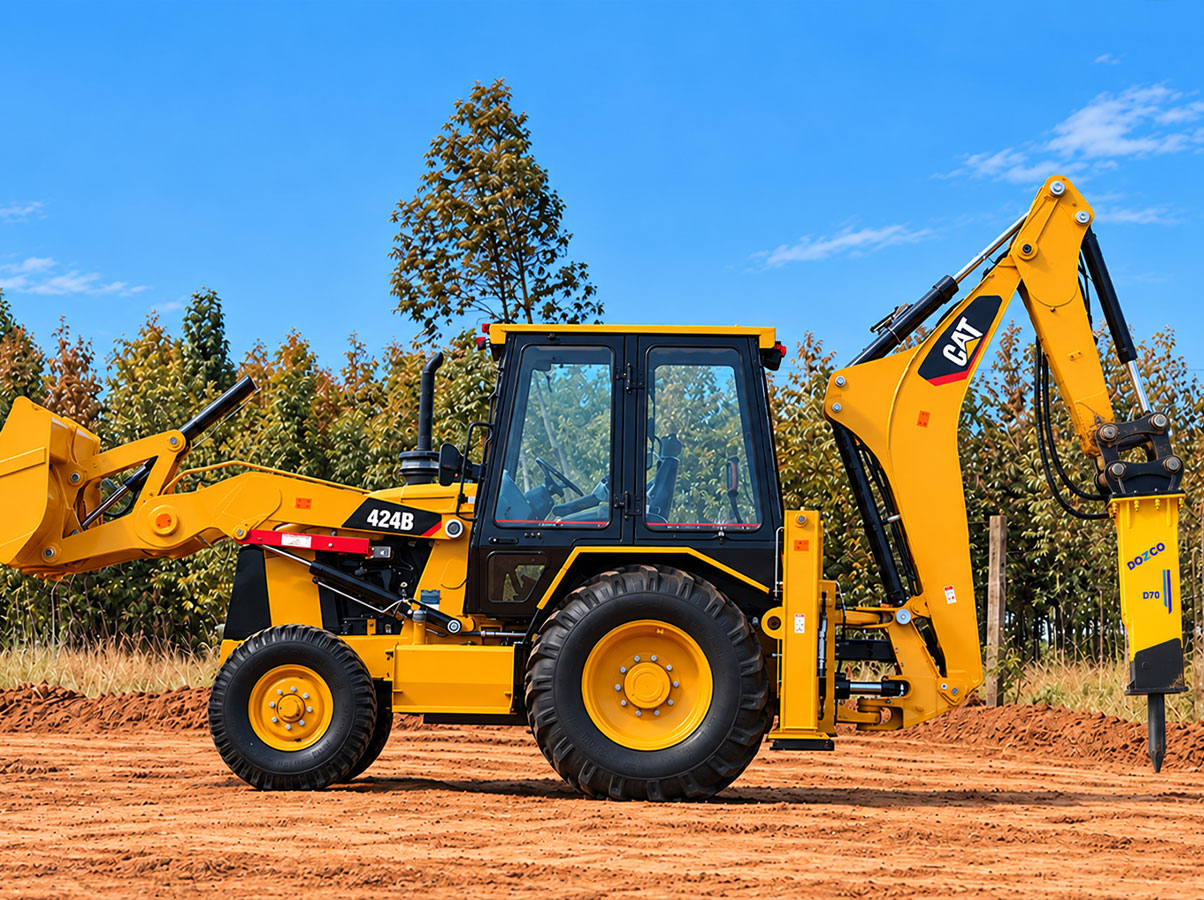

DOZCO D70 Rock Breaker
Light RangeDOZCO D70 Rock Breaker - Light Range
Operating Weight
359 Kg
Optimal Oil Flow
40 – 70 lpm
Impact Rate
500 – 900 BPM
Tool Diameter
68 mm

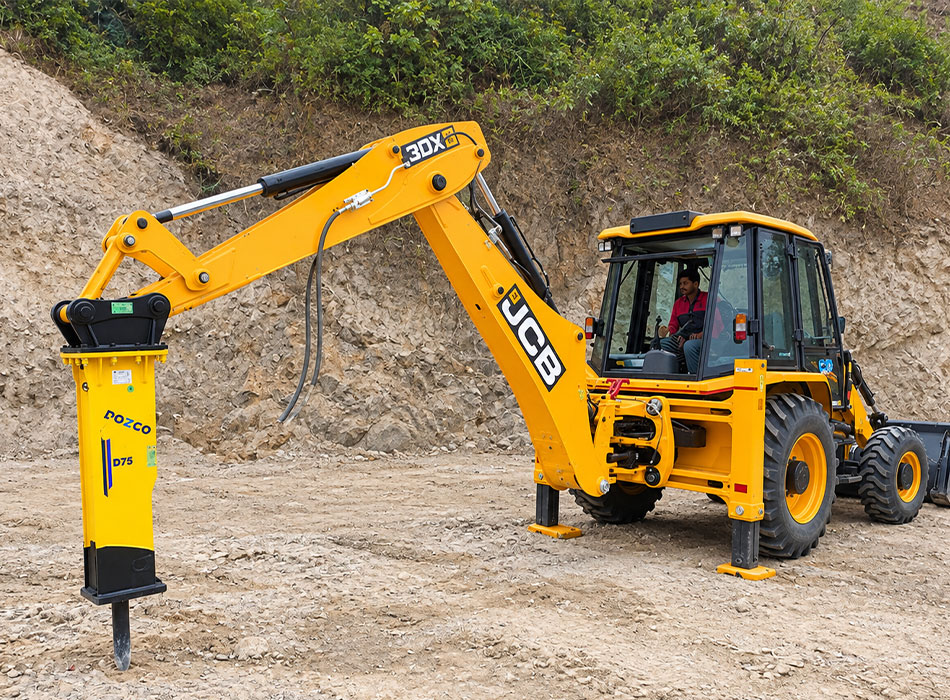

DOZCO D75 Rock Breaker
Light RangeDOZCO D75 Rock Breaker - Light Range
Operating Weight
426 kg
Optimal Oil Flow
50 – 90 lpm
Impact Rate
400 – 800 BPM
Tool Diameter
75 mm

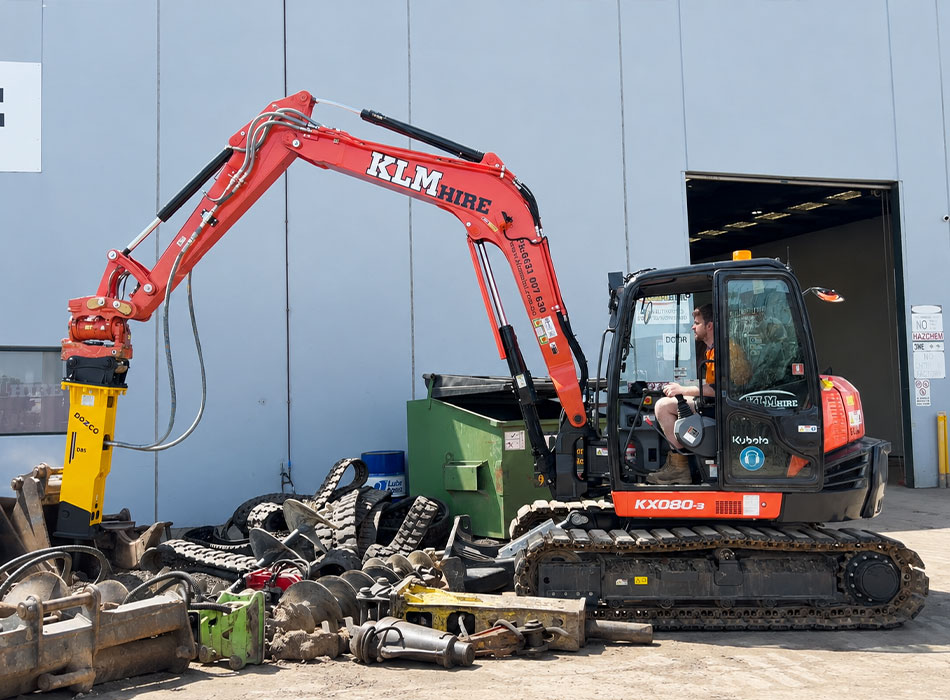

DOZCO D85 Rock Breaker
Light RangeDOZCO D85 Rock Breaker - Light Range
Operating Weight
632 Kg
Optimal Oil Flow
60 – 100 lpm
Impact Rate
400 – 800 BPM
Tool Diameter
85 mm
Applicable Machines:
- Mini-Excavators,
- Backhoes,
- Skid Steer Loaders,

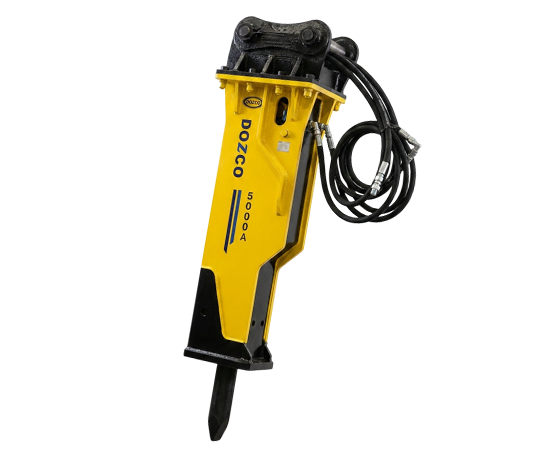

Built for the Job: Inside a DOZCO Hydraulic Rock Breaker
DOZCO hydraulic rock breakers are built to be strong, reliable, and easy to operate. Their balanced power-to-weight design helps operators work efficiently without overloading the machine.
Depending on the model, the hydraulic breakers come with features such as a BPM adjuster, a reinforced chisel pin, optional auto greasing, and an integrated accumulator. This improves breaking efficiency and reduces wear. Since, the products are manufactured for demanding job sites, they deliver consistent performance and longer service life.

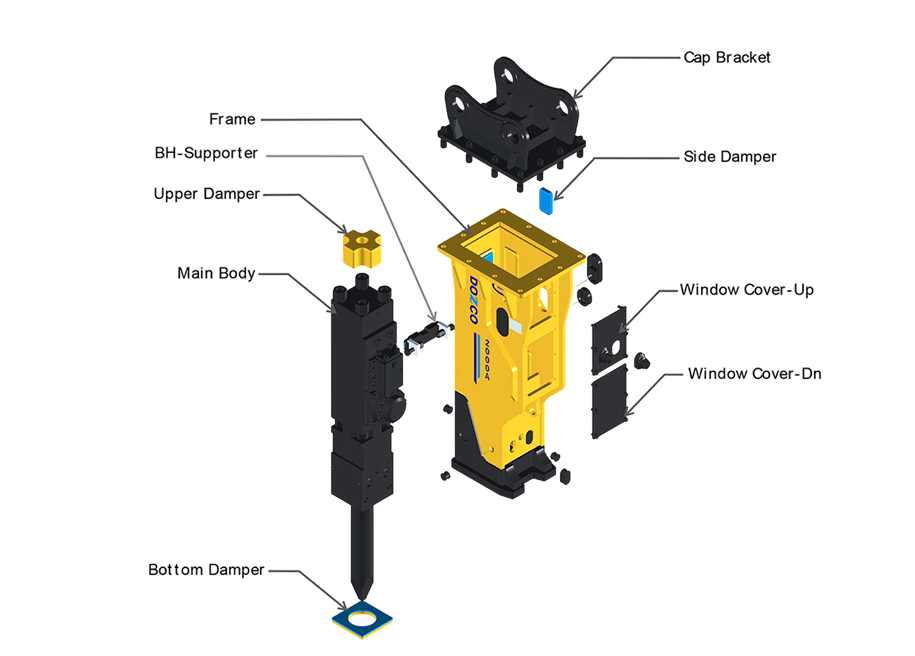

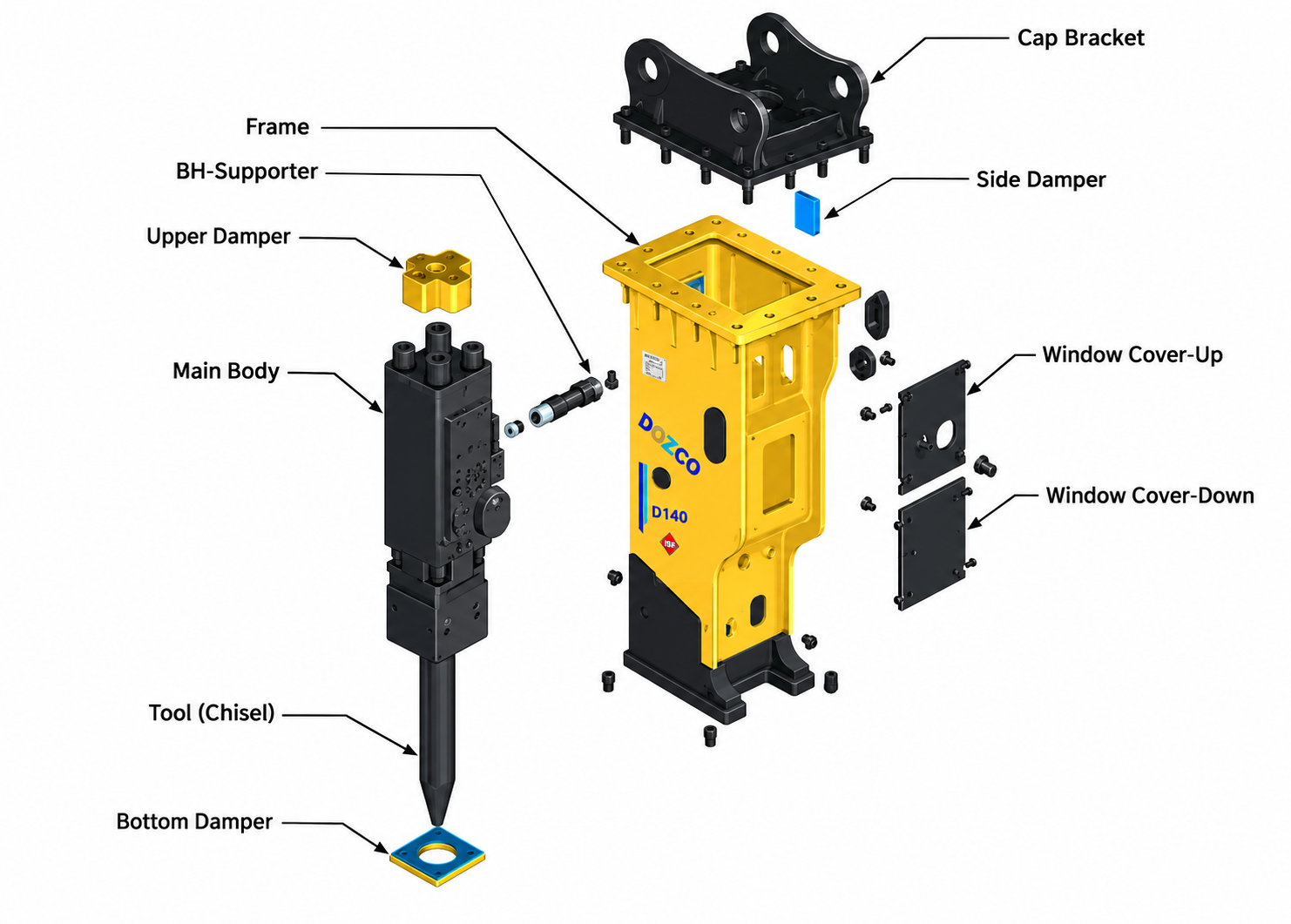

Rock Breaker Parts and Their Functions
A rock breaker is made of different parts, including:
- Cap Bracket: It secures the breaker to the carrier machine and ensures stable attachment.
- Frame: The outer housing that protects internal components from external damage.
- BH-Supporter: It provides structural support and maintains proper alignment of internal parts.
- Upper Damper: Absorbs vibration generated during operation to reduce stress on the machine.
- Side Damper: Minimizes lateral shock and enhances overall stability.
- Main Body: Contains the piston, cylinder, and other core components that generate impact force.
- Bottom Damper: Reduces shock transmission to the tool and improves durability.
- Window Cover: Helps with inspection and access to internal components for maintenance.
DOZCO Rock Breakers are compatible with OEM Excavator Brand
Komatsu
PC09, PC14, PC18MR-5
Kubota
K008-3, U10-5, U17-3α

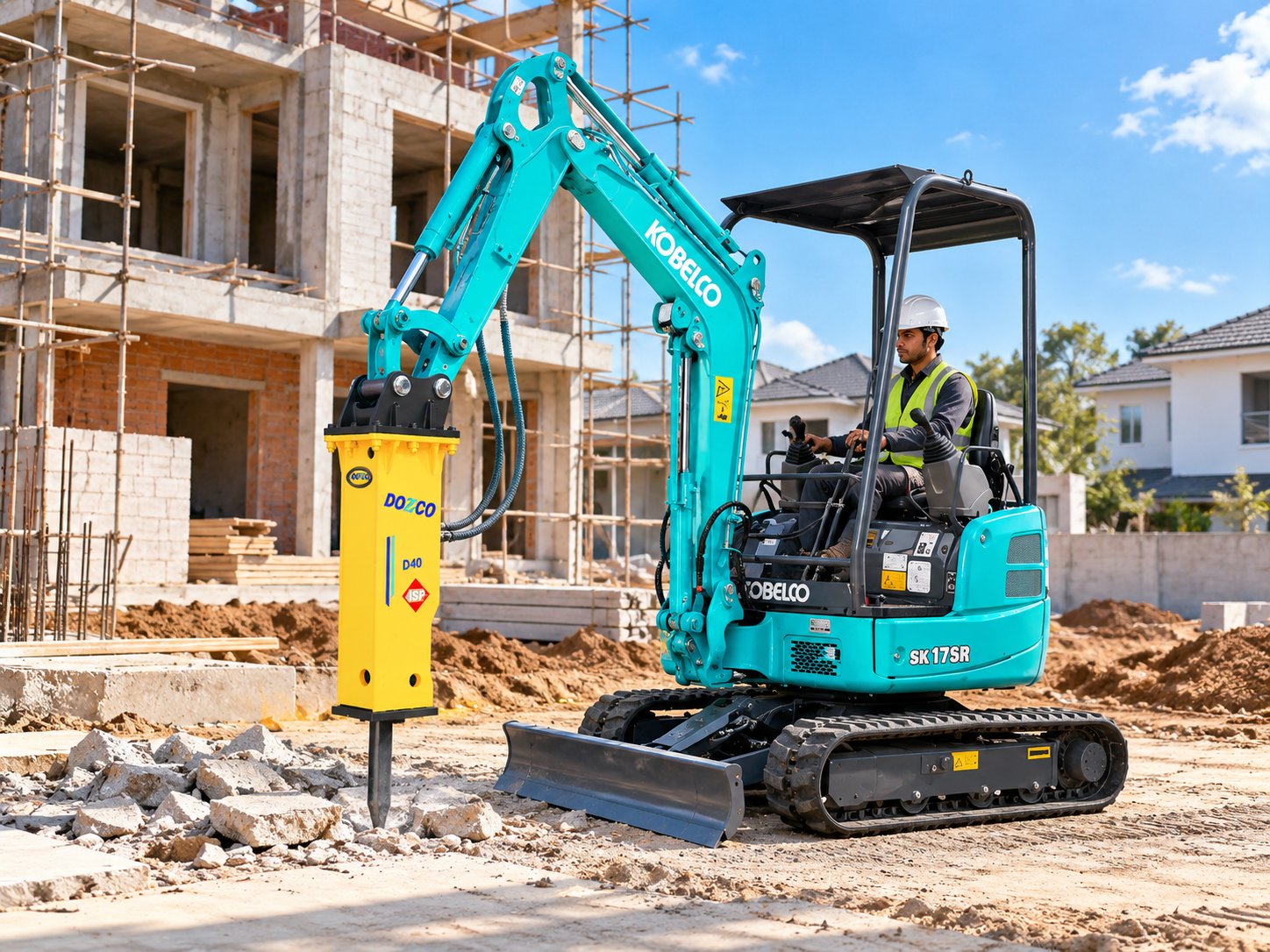

Kobelco
SK17SR-6

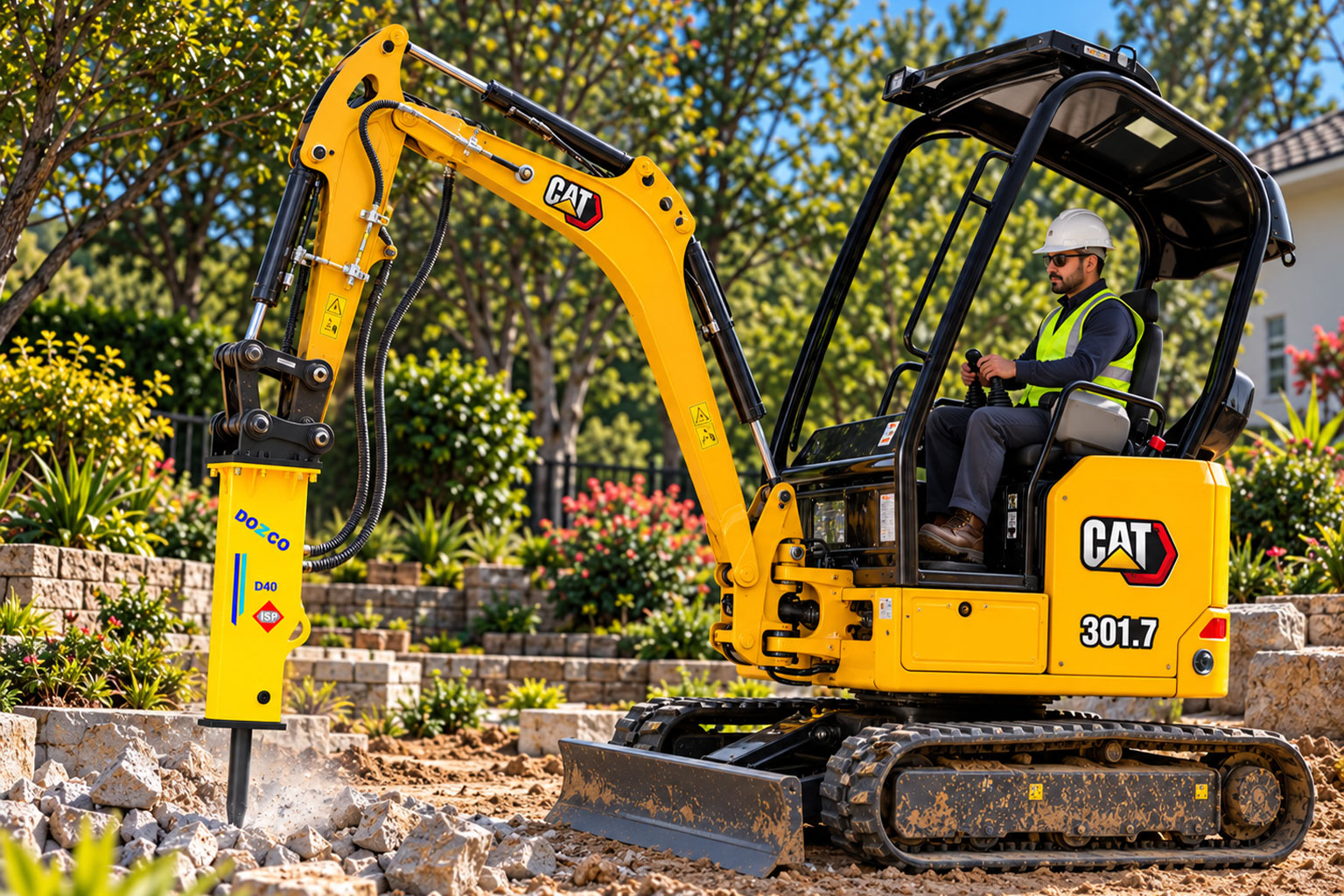

Caterpillar
300.9D, 301.5, 301.6, 301.7CR, 301.8
Kubota
U48-4, U55-4, KX040-4, KX057-4, KX057-5, U55-5

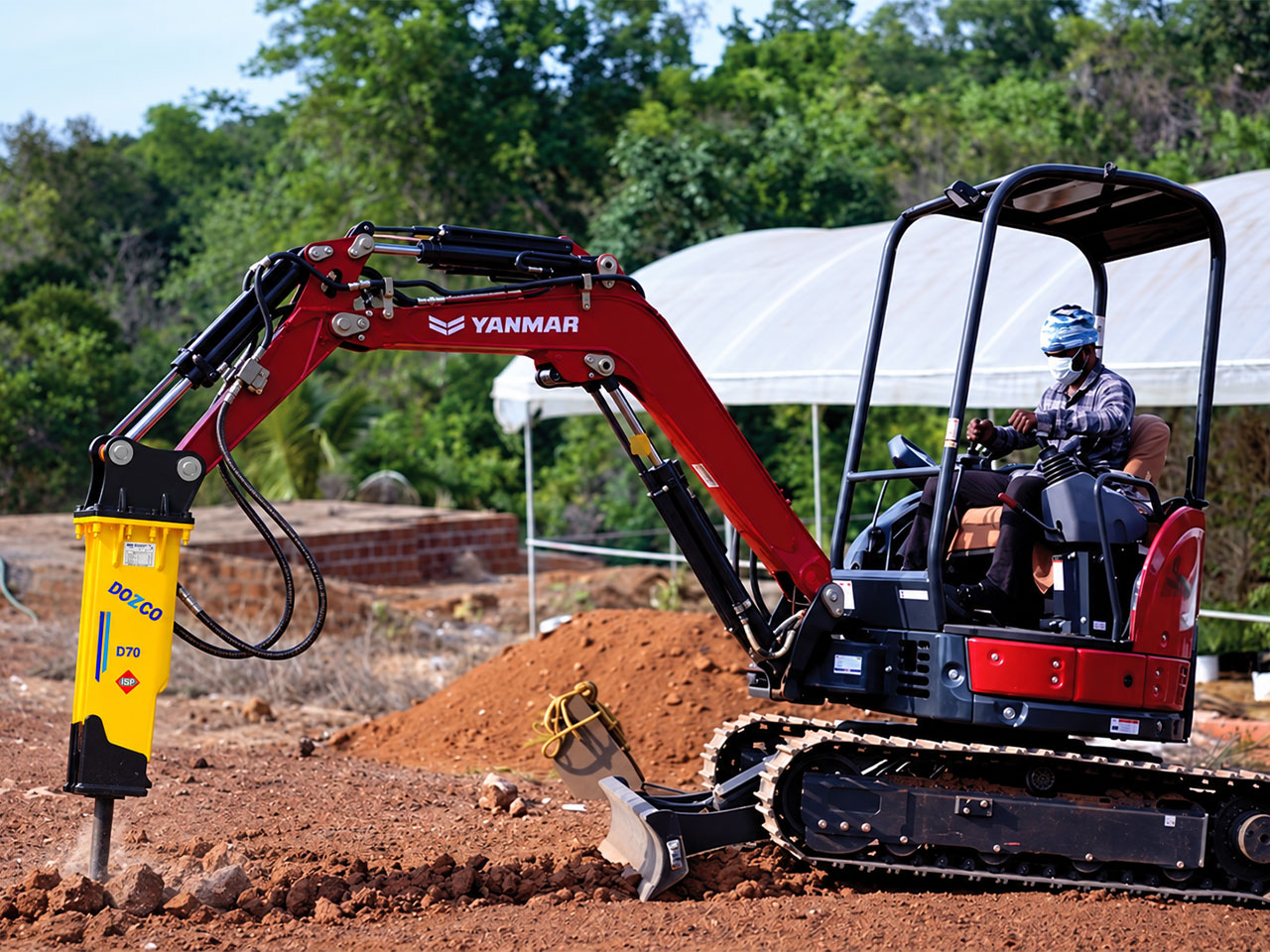

Yanmar
ViO50, ViO57, ViO80, SV50, SV60
Caterpillar
305 CR, 305.5E2, 306 CR, 307.5, 428 Backhoe, 432 Backhoe

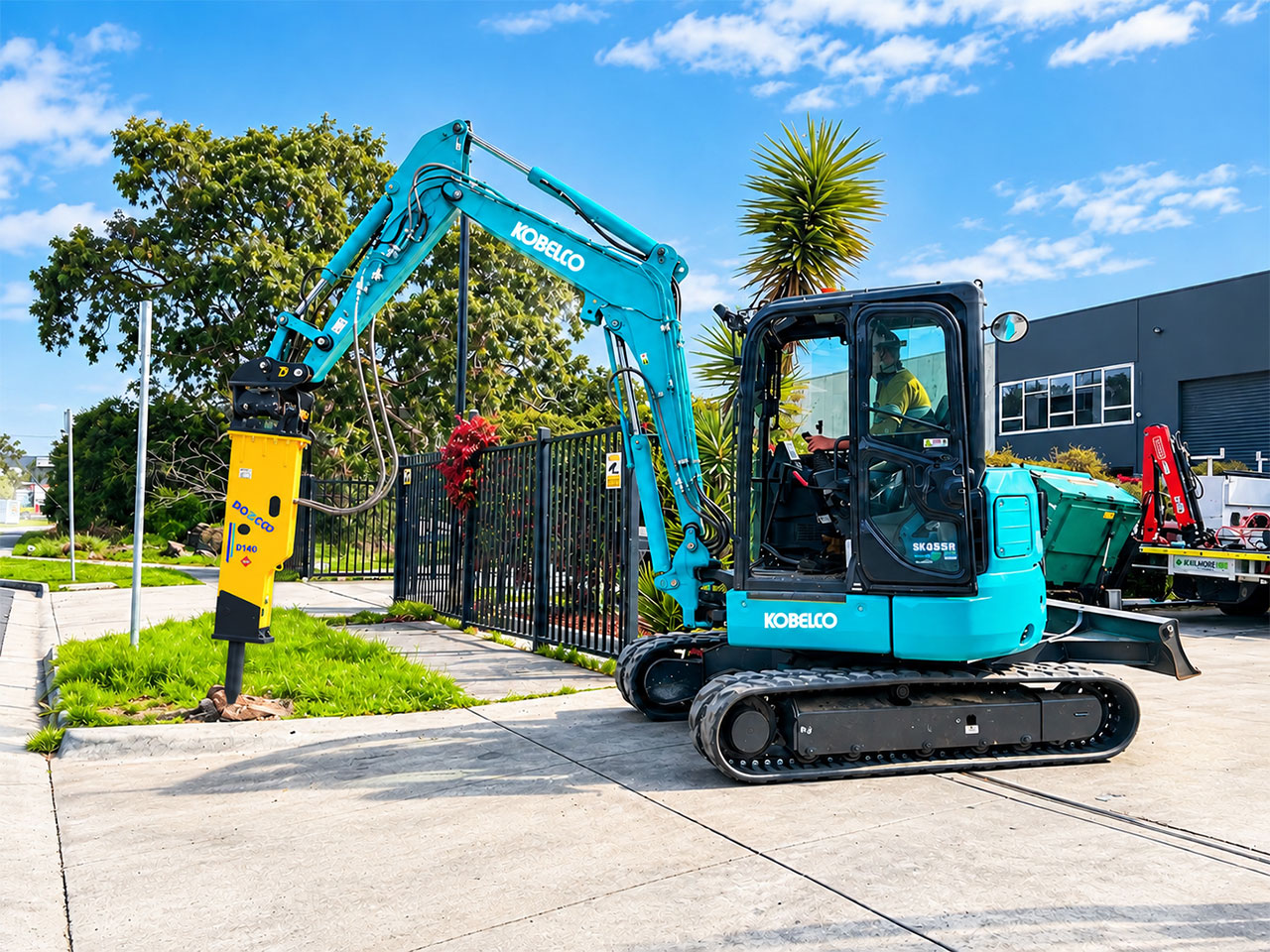

Kobelco
SK45SRX-6, SK55SRX-6, SK75SR-7

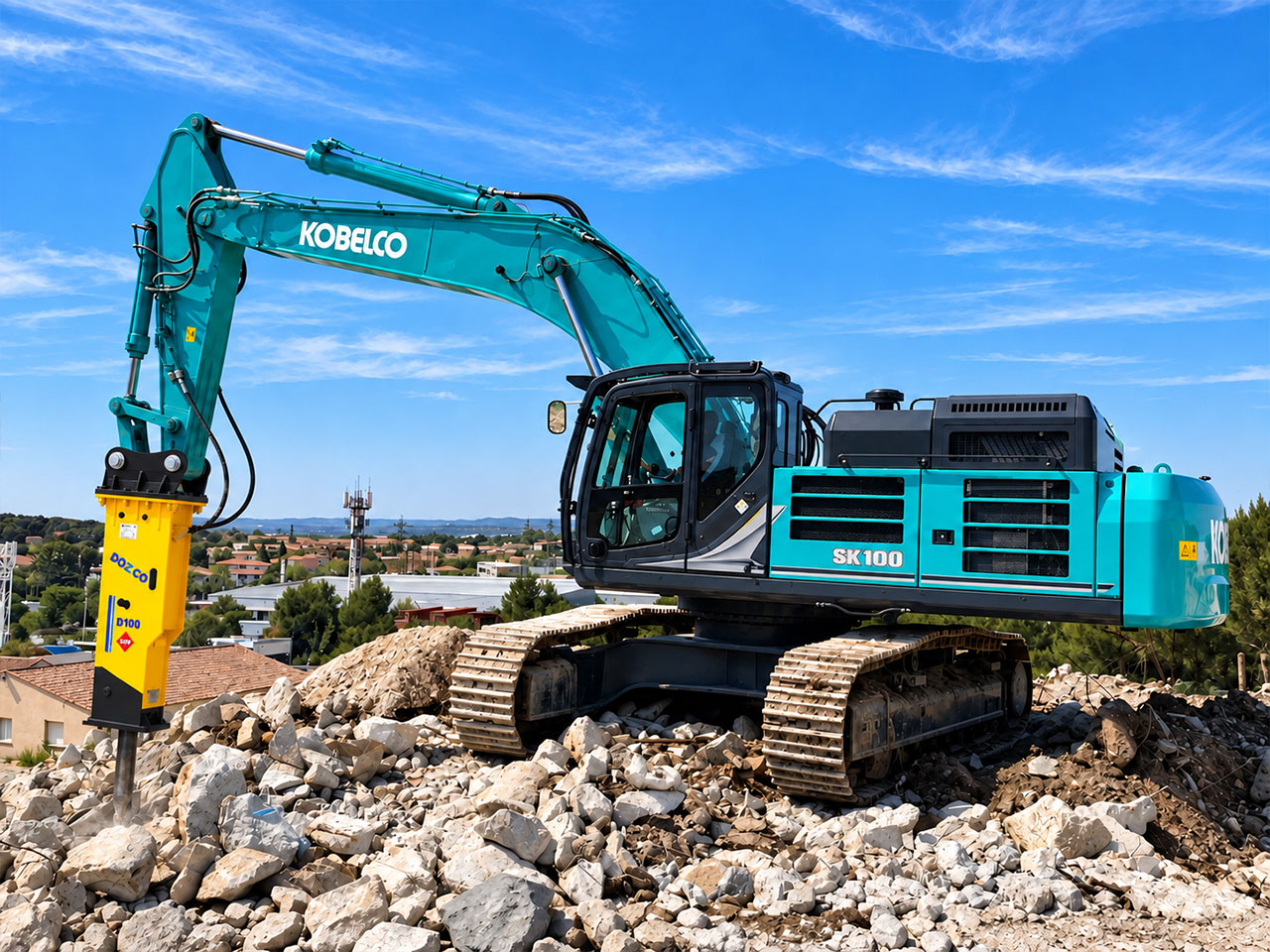

Kobelco
SK100, SK130LC-11, SK135SR-7

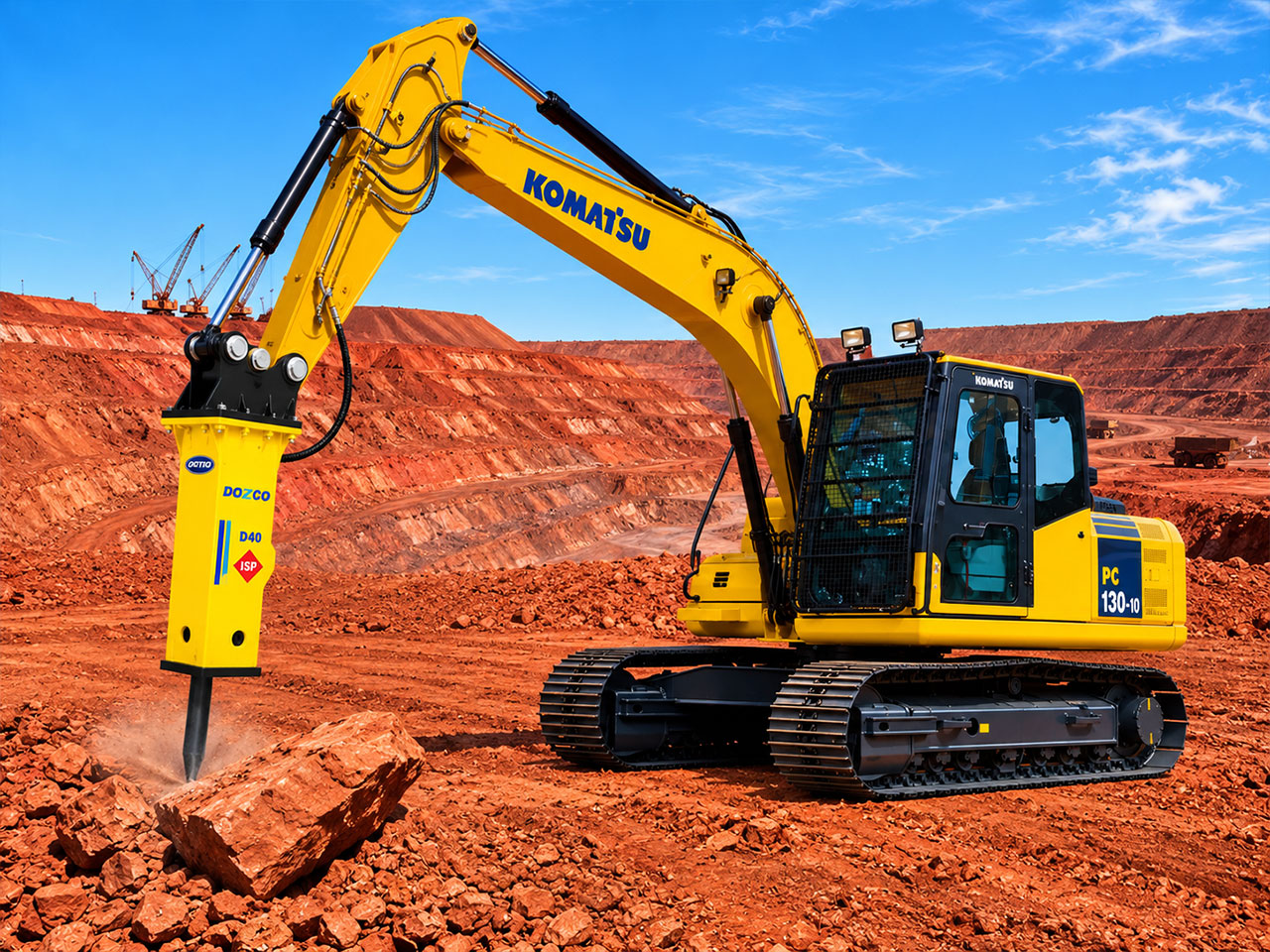

Komatsu
PC118MR-11, PC130-10, PC138US-11

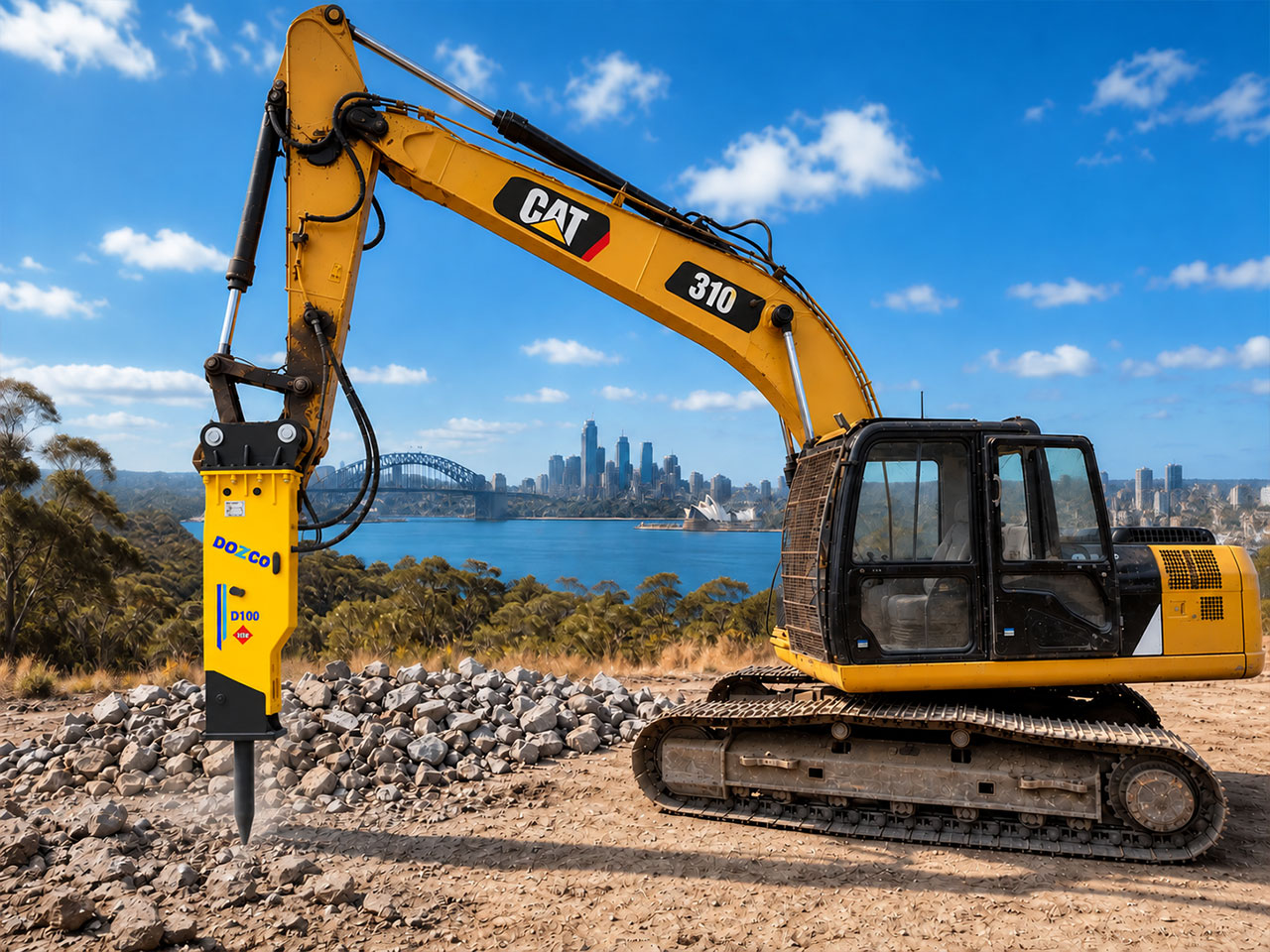

Caterpillar
310, 311F L RR, 313F L GC

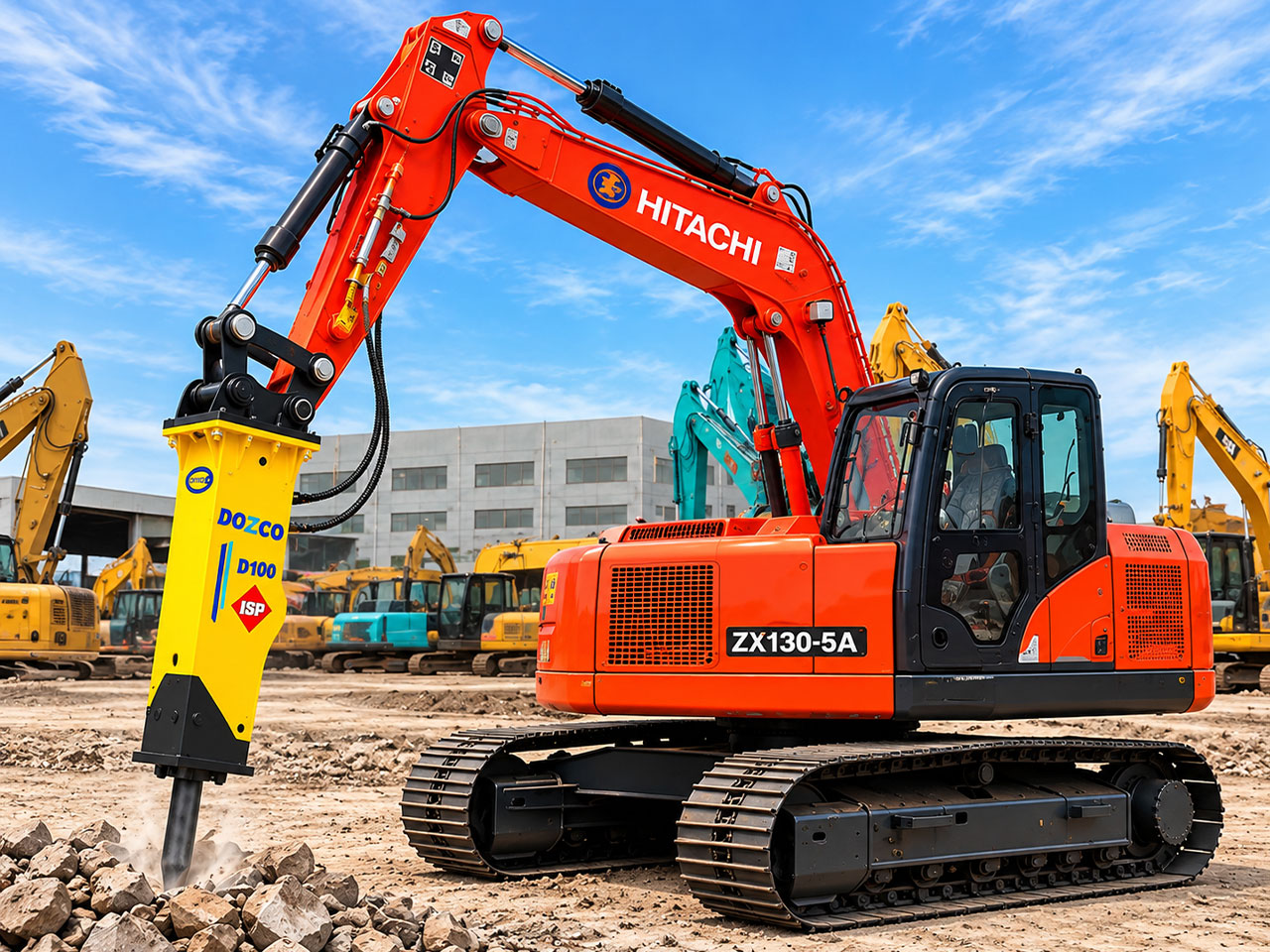

Hitachi
ZX110-5A, ZX130-5A, ZX135US-5A

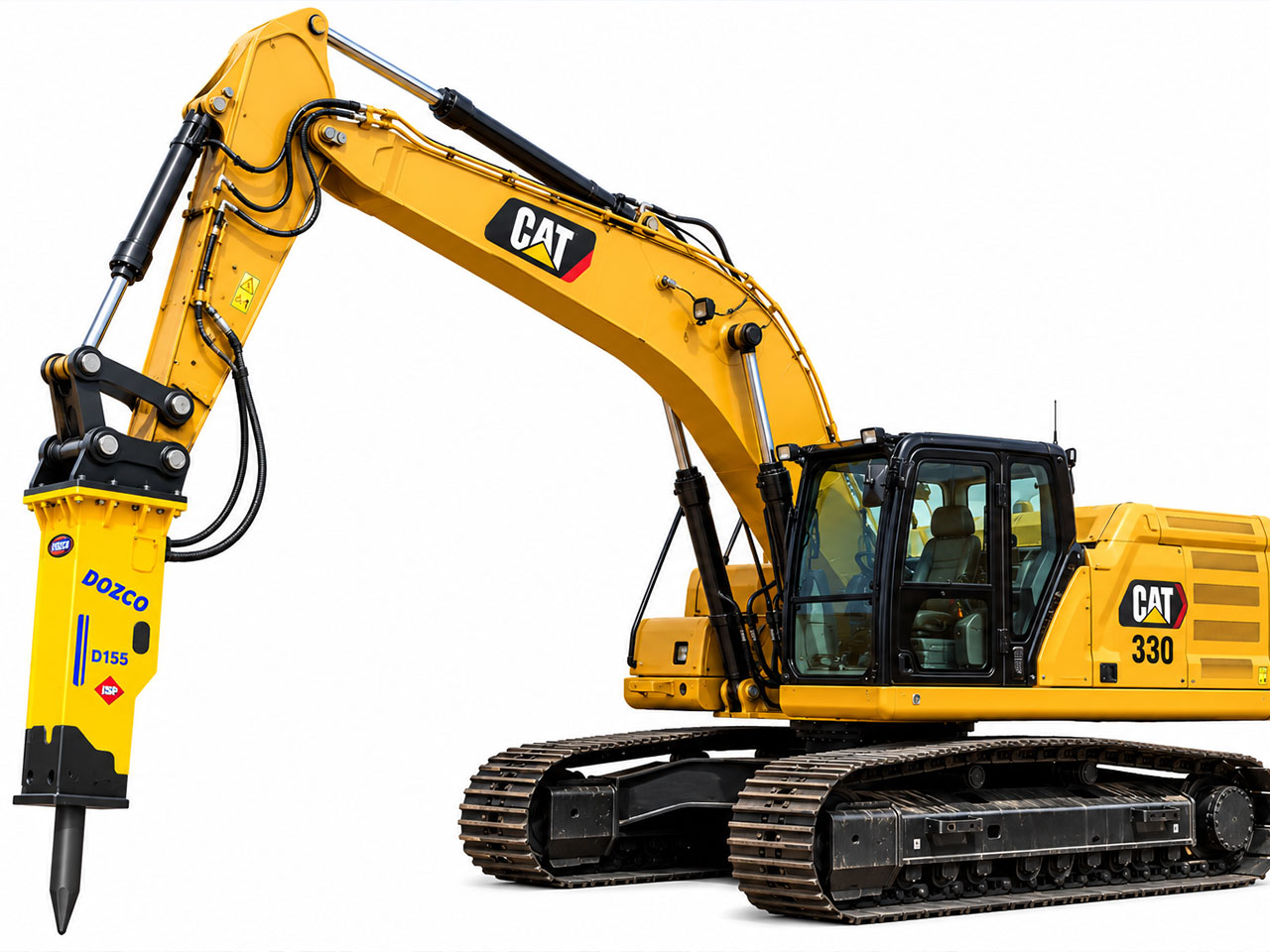

Caterpillar
330 GC, 330, 336 GC, 336, 340

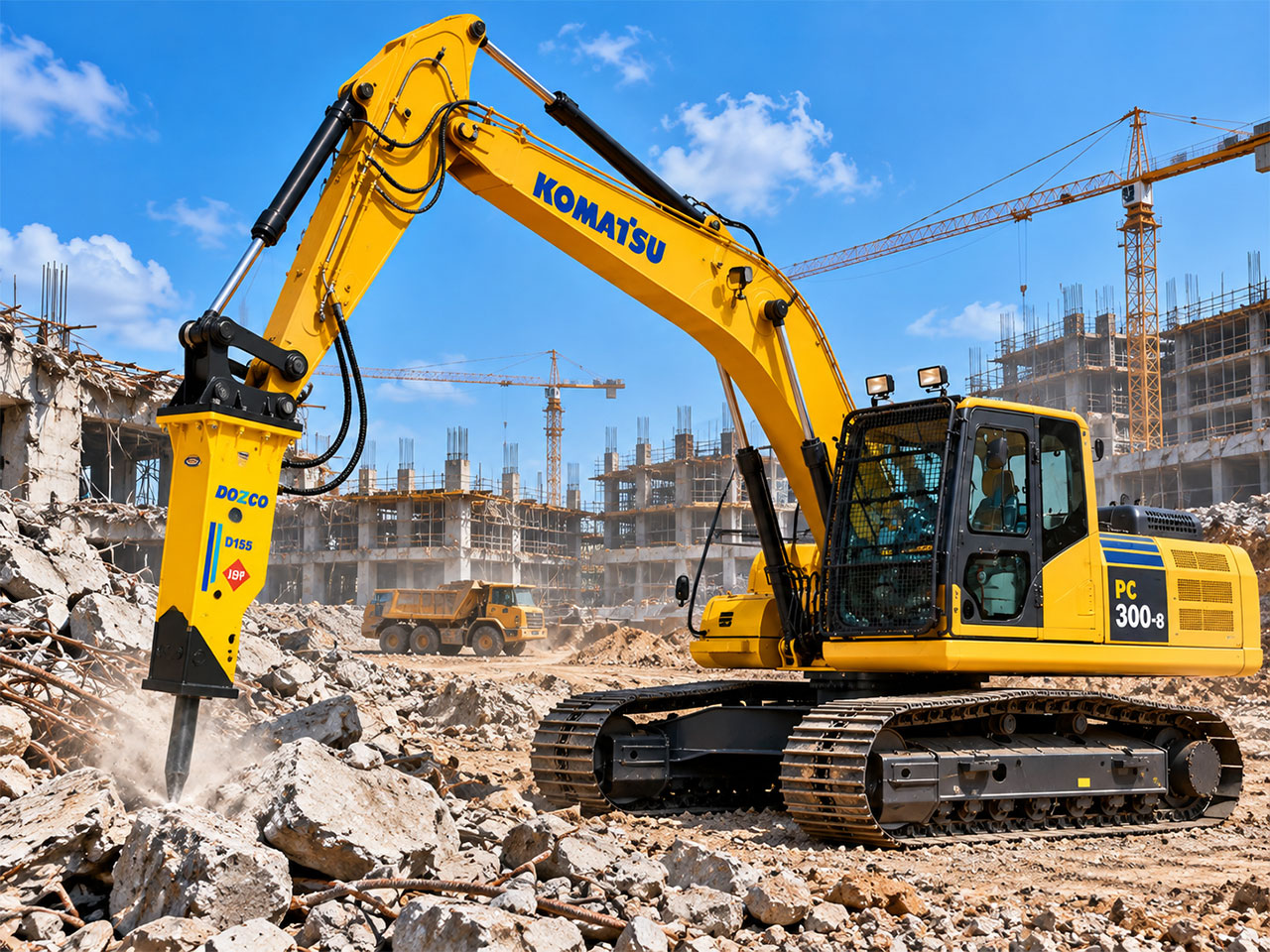

Komatsu
PC290LC-11, PC300-8, PC300LC-8M0, PC360-10, PC360LC-11

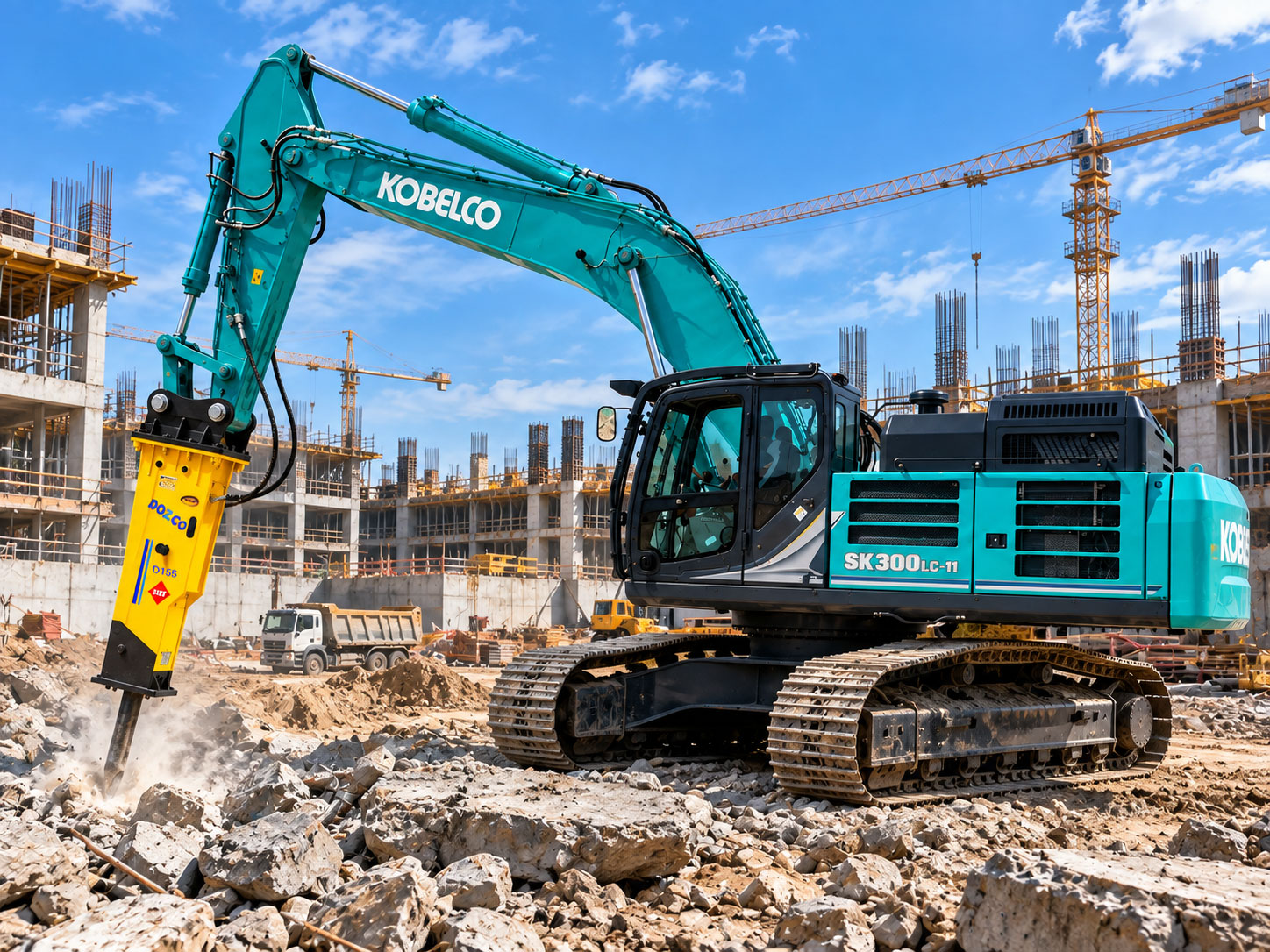

Kobelco
SK300LC-11, SK330LC-11, SK350LC-11
Hitachi
ZX300LC-5A, ZX330, ZX350LC-5A, ZX380
Application
DOZCO is a leading rock breaker and mining undercarriage supplier in Australia. Our products are customized for mining operations and...
Mining & Quarrying
DOZCO is a leading rock breaker and mining undercarriage supplier in Australia. Our products are customized for mining operations and...
The undercarriage, on the other hand, offers stability even in harsh grounds. With reliable performance and strong after-sales support, our...
Construction & Demolition
The undercarriage, on the other hand, offers stability even in harsh grounds. With reliable performance and strong after-sales support, our...
Designed with advanced technology and precise engineering, our attachments and parts help contractors and construction companies reduce downtime, improve productivity,...
Road Construction / Trenching / Compaction
Designed with advanced technology and precise engineering, our attachments and parts help contractors and construction companies reduce downtime, improve productivity,...
Contractors can crush, sort, and reuse materials like concrete and aggregates efficiently directly on site. This approach helps reduce waste...
Material Processing & Recycling
Contractors can crush, sort, and reuse materials like concrete and aggregates efficiently directly on site. This approach helps reduce waste...
OEM Compatible Rock Breakers for Leading Excavator Brands
(*OEM names and images are used for reference only)DOZCO supplies high-performance hydraulic rock breakers designed to suit major OEM excavator brands used across mining, demolition, quarrying, and construction projects in Australia. Our rock breaker attachments are compatible with Caterpillar, Komatsu, Volvo, Hitachi, Hyundai, Kobelco, Sumitomo, CASE, Doosan, JCB, and other leading heavy equipment brands.
Become a DOZCO Dealer
If you’re a reseller or distributor of undercarriage parts or rock breakers across Australia, New Zealand, Fiji or the south pacific region, we invite you to get in touch to discuss how we can help you grow your business with quality products backed by responsive local service.
To learn more or request a quote, contact our local team on 1300 2 36929 or admin@dozco.com.au or submit the form below and we’ll get back to you.
DOZCO Hydraulic Rock Breakers — Available Across Australia
When the job involves hard rock, concrete demolition, or tough trenching conditions, you need an attachment that keeps up. DOZCO supplies hydraulic rock breakers and excavator hammer attachments built for long working hours on demanding Australian sites. We stock a wide range of hydraulic excavator breakers to suit popular machine sizes, with excavator jack hammer options available for everything from compact units to larger earthmoving equipment. As a reliable source of Australian hammer supplies, we carry consistent stock and know the gear inside out. Contractors trust DOZCO for dependable excavator rock breaker attachments, straightforward product advice, and fast supply. Whether you need a hydraulic rock hammer for quarrying, demolition, or general excavation, our team helps you find the right rock breaker excavator fit for your machine and your job. Headquartered in Melbourne, we support customers nationwide. Get in touch to find your nearest distributor or request a quote.
Frequently Asked Questions
Q. What gas is used inside a hydraulic rock breaker and why?
Q. What are DOZCO hydraulic rock breakers used for?
Q. How do I choose the right rock breaker for my excavator?
Q. What size rock breakers are available from DOZCO?
Q. Do hydraulic rock breakers work on both primary and secondary breaking tasks?
Q. Are DOZCO rock breakers suitable for different machine sizes?
Q. Are DOZCO rock breakers reliable in the Australian landscape?
Q. Do DOZCO rock breakers require high maintenance?
